Kyocera

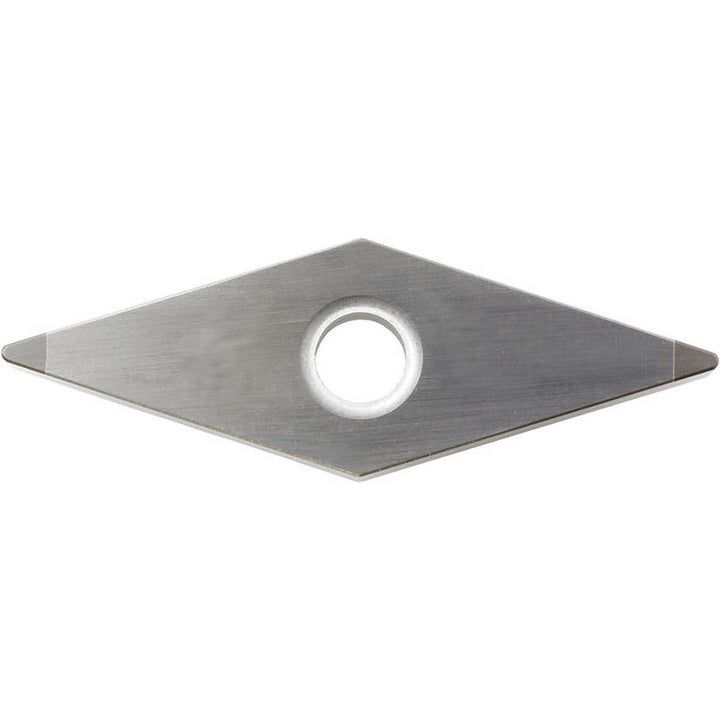

VNGA160404S01225ME CBN Insert, Grade KBN05M, MEGACOAT - Kyocera TBN06007
MFR# TBN06007ISO/ANSI# VNGA160404Series ISOI
$68.05List $97.92
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKBN05M
MaterialCBN
CoatingMEGACOAT
Description
The Kyocera TBN06007 is a VNGA160404S01225ME cbn indexable insert, grade KBN05M, MEGACOAT coated. Suited for hard material.
Specifications
Ansi insert codeVNGA331
Ansi size code331
Clearance codeN
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsHardened Materials (H) - High Wear-Resistance
Hole diameter0.1500
Included angle35
Industry standard numberVNGA331S00525MEKBN05M
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCBN
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA160404S01225ME
Iso insert codeVNGA160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog numberTBN06007
Manufacturer gradeKBN05M
Material gradeH01; H10
Maximum depth of cut0.0787
Multi use applicationCopying; External Turning; Facing; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0787
Tolerance codeG
Width in3/8
Wiper edgeNo
