Kyocera

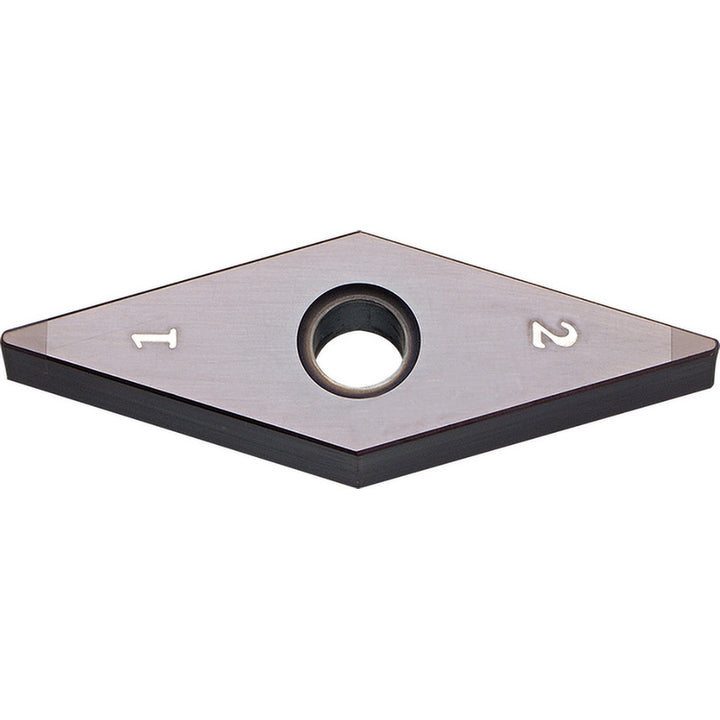

VNGA160404ME4 Cubic Boron Nitride (CBN) Insert, Grade KBN05M, MEGACOAT - Kyocera TBN06070
MFR# TBN06070ISO/ANSI# VNGA331ME4KBN05MSeries ISOI
$93.67List $134.78
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKBN05M
MaterialCubic Boron Nitride (CBN)
CoatingMEGACOAT
Description
The Kyocera TBN06070 is a VNGA160404ME4 cubic boron nitride (cbn) indexable insert, grade KBN05M, MEGACOAT coated. Suited for hard material.
Specifications
Clearance codeN
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGA331ME4KBN05M
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond 35
Insert size code331
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA160404ME4
Length range0.7000 - 10.0000
Manufacturers catalog numberTBN06070
Manufacturer gradeKBN05M
Material gradeH01; H10
Maximum depth of cut0.0787
Multi use applicationCopying; External Turning; Facing; Undercutting
Multi use toolYes
Number of cutting edges6
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0787
Tolerance codeG
Width in3/8in
Wiper edgeNo
