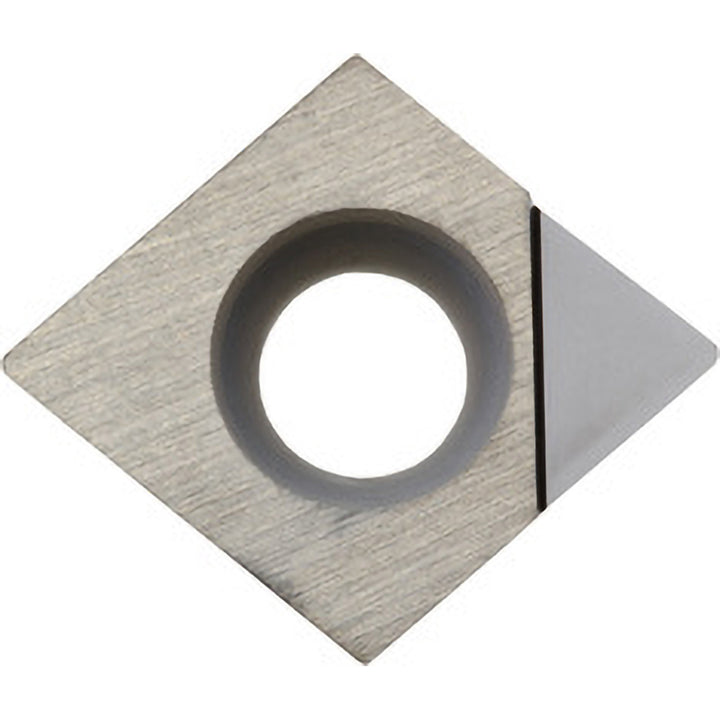

CCMT09T301SE PCD Insert, Grade KPD001 - Kyocera TBR01148

Kyocera

CCMT09T301SE PCD Insert, Grade KPD001 - Kyocera TBR01148

MFR# TBR01148ISO/ANSI# CCMT32502SEKPD001Series ISOI

$47.40List $68.21 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKPD001
MaterialPCD

Description

The Kyocera TBR01148 is a CCMT09T301SE pcd indexable insert, grade KPD001. Suited for non-ferrous metal, superalloy.

Specifications

Ansi size code32502
Clearance codeC
Coating processUncoated
Corner radius in1/256
Cutting edge styleHoned
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCMT32502SEKPD001
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32502
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T301SE
Iso size code09T301
Length range0.3000 - 0.4000
Manufacturers catalog numberTBR01148
Manufacturer gradeKPD001
Material gradeSuper Micrograin
Maximum depth of cut0.1063
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakePositive
Relief angle7
Secondary workpiece materialSuperalloy
Side clearancePositive
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tip length0.1063
Tolerance codeM
Width in3/8
Wiper edgeNo
