Kyocera

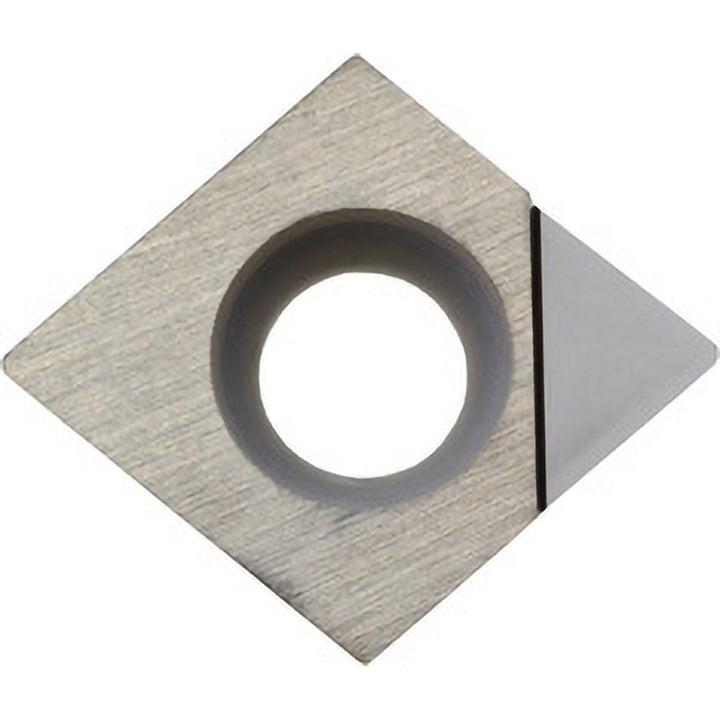

CCMT09T304SE PCD Insert, Grade KPD001 - Kyocera TBR01150
MFR# TBR01150ISO/ANSI# CCMT3251SEKPD001Series ISOI
$48.24List $68.21
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeKPD001
MaterialPCD
Description
The Kyocera TBR01150 is a CCMT09T304SE pcd indexable insert, grade KPD001. Suited for non-ferrous metal, superalloys.
Specifications
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMT3251SEKPD001
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialPCD
Insert shapeDiamond 80
Insert size code3251
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304SE
Length range0.3000 - 0.4000
Manufacturers catalog numberTBR01150
Manufacturer gradeKPD001
Material gradeSuper Micrograin
Maximum depth of cut0.1063
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal; Superalloys
RakePositive
Relief angle7
Secondary workpiece materialSuperalloy
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tip length0.1063
Tolerance codeM
Width in3/8in
Wiper edgeNo
