Kyocera

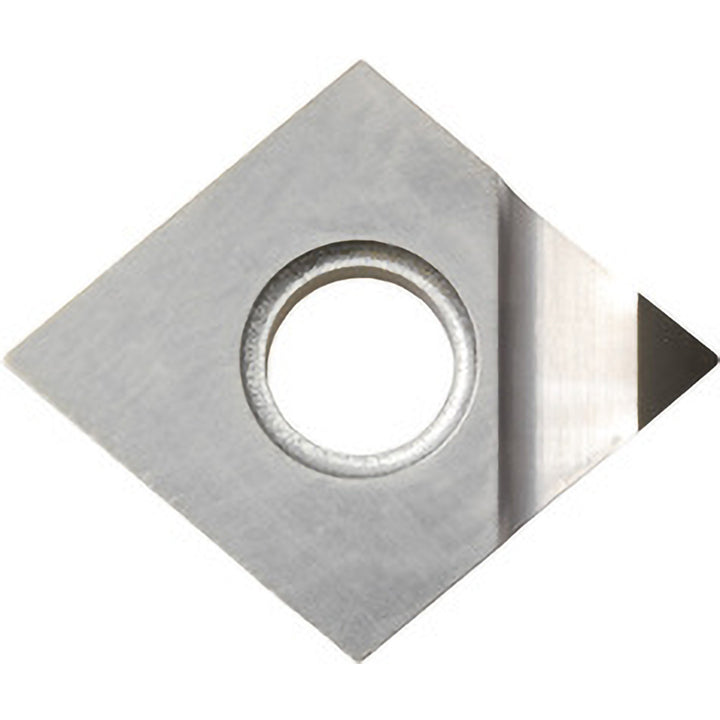

CNMM120404M-SE PCD Insert, Grade KPD001 - Kyocera TBR01611
MFR# TBR01611ISO/ANSI# CNMM431MSEKPD001Series ISOI
$48.24List $68.21
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKPD001
MaterialPCD
Description
The Kyocera TBR01611 is a CNMM120404M-SE pcd indexable insert, grade KPD001. Suited for non-ferrous metal, superalloys.
Specifications
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMM431MSEKPD001
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialPCD
Insert shapeDiamond 80
Insert size code431
Insert styleCNMM
Insert thickness in3/16
Iso codeCNMM120404M-SE
Length range0.5000 - 0.6000
Manufacturers catalog numberTBR01611
Manufacturer gradeKPD001
Material gradeSuper Micrograin
Maximum depth of cut0.1102
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal; Superalloys
RakeNegative
Relief angle0
Secondary workpiece materialSuperalloy
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tip length0.1102
Tolerance codeM
Width in1/2in
Wiper edgeNo
