Kyocera

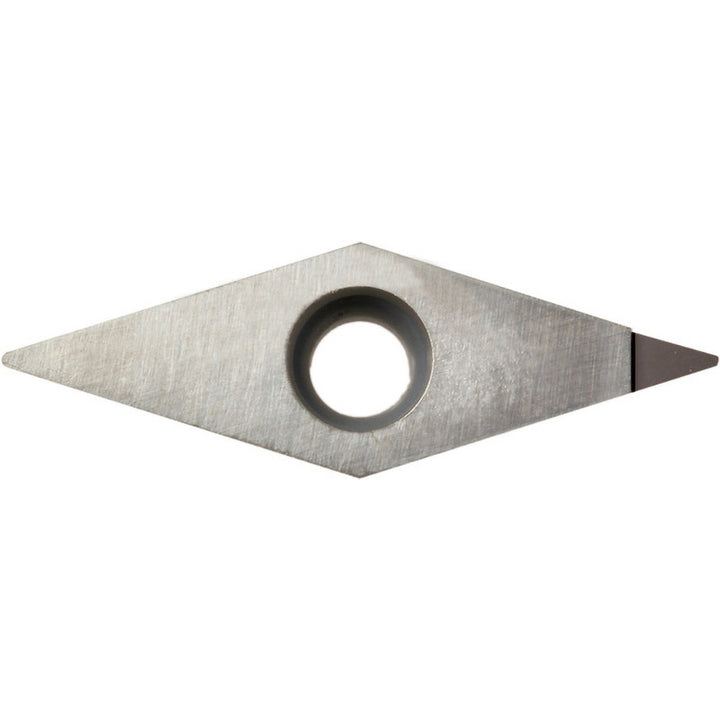

VBMT160404SE PCD Insert, Grade KPD001 - Kyocera TBR05640
MFR# TBR05640ISO/ANSI# VBMT331SEKPD001Series ISOI
$50.93List $72.02
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKPD001
MaterialPCD
Description
The Kyocera TBR05640 is a VBMT160404SE pcd indexable insert, grade KPD001. Suited for non-ferrous metal, superalloys.
Specifications
Clearance codeB
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle35degree
Industry standard numberVBMT331SEKPD001
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3080
Insert materialPCD
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404SE
Length range0.7000 - 10.0000
Manufacturers catalog numberTBR05640
Manufacturer gradeKPD001
Material gradeSuper Micrograin
Maximum depth of cut0.0827
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal; Superalloys
RakePositive
Rake angle10
Relief angle5
Secondary workpiece materialSuperalloy
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tip length0.0827
Tolerance codeM
Width in3/8in
Wiper edgeNo
