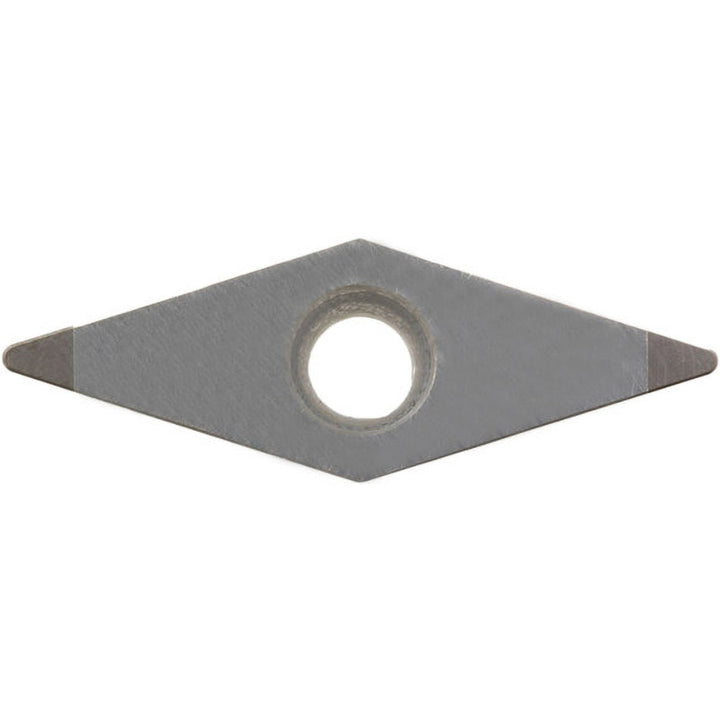

VBGW110304S01035MET Cubic Boron Nitride (CBN) Insert, Grade KBN525 - Kyocera TBW05500

Kyocera

VBGW110304S01035MET Cubic Boron Nitride (CBN) Insert, Grade KBN525 - Kyocera TBW05500

MFR# TBW05500ISO/ANSI# VBGW221METKBN525Series ISOI

$71.79List $103.30 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeKBN525
MaterialCubic Boron Nitride (CBN)

Description

The Kyocera TBW05500 is a VBGW110304S01035MET cubic boron nitride (cbn) indexable insert, grade KBN525. Suited for hard material.

Specifications

Clearance codeB
Coating processUncoated
Corner radius in1/64
Full radiusNo
Hole diameter0.1102
Included angle35degree
Industry standard numberVBGW221METKBN525
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8720
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond 35
Insert size code221
Insert styleVBGW
Insert thickness in1/8
Iso codeVBGW110304S01035MET
Length range0.7000 - 10.0000
Manufacturers catalog numberTBW05500
Manufacturer gradeKBN525
Material gradeH01; H10
Maximum depth of cut0.0790
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Relief angle5
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0790
Tolerance codeG
Width in1/4in
Wiper edgeNo
