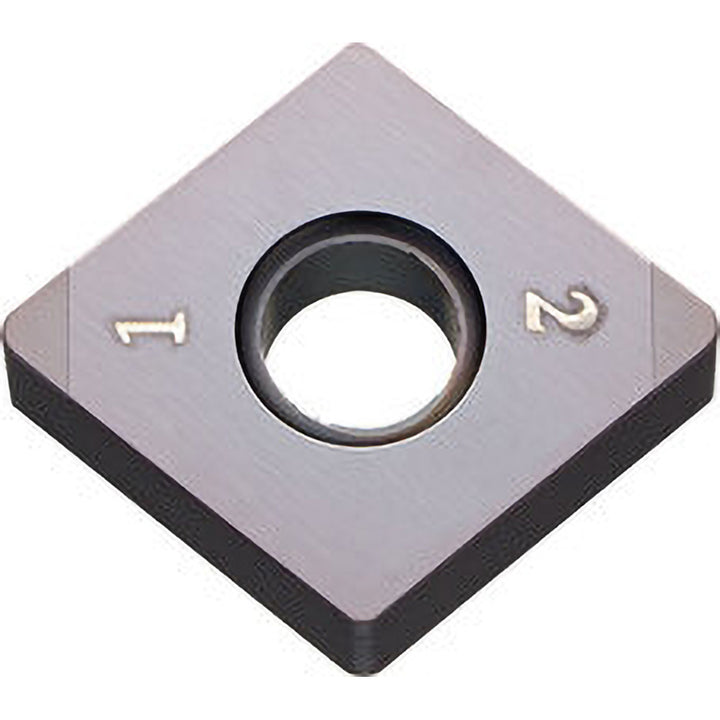

CNGA120404S01225ME Cubic Boron Nitride (CBN) Insert, Grade KBN25M, MEGACOAT - Kyocera TBZ01456

Kyocera

CNGA120404S01225ME Cubic Boron Nitride (CBN) Insert, Grade KBN25M, MEGACOAT - Kyocera TBZ01456

MFR# TBZ01456ISO/ANSI# CNGA431S00525MEKBN25MSeries ISOI

$69.30List $99.73 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKBN25M
MaterialCubic Boron Nitride (CBN)
CoatingMEGACOAT

Description

The Kyocera TBZ01456 is a CNGA120404S01225ME cubic boron nitride (cbn) indexable insert, grade KBN25M, MEGACOAT coated. Suited for hard material.

Specifications

Clearance codeN
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNGA431S00525MEKBN25M
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond 80
Insert size code431
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120404S01225ME
Length range0.5000 - 0.6000
Manufacturers catalog numberTBZ01456
Manufacturer gradeKBN25M
Material gradeMicrograin
Maximum depth of cut0.1024
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1024
Tolerance codeG
Width in1/2in
Wiper edgeNo
