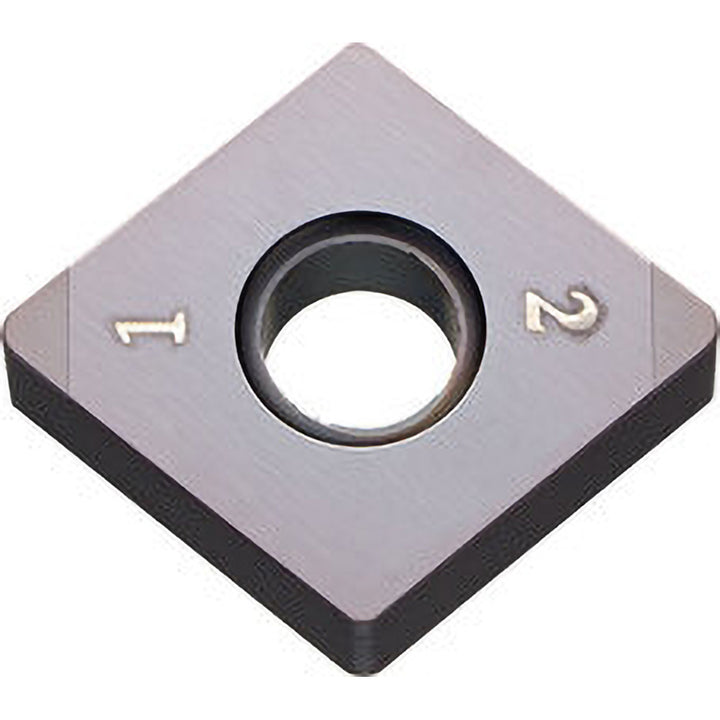

CNGA120408S01225ME Cubic Boron Nitride (CBN) Insert, Grade KBN25M, MEGACOAT - Kyocera TBZ01457
MFR# TBZ01457ISO/ANSI# CNGA432S00525MEKBN25MSeries ISOI
$70.53List $99.73
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKBN25M
MaterialCubic Boron Nitride (CBN)
CoatingMEGACOAT
Description
The Kyocera TBZ01457 is a CNGA120408S01225ME cubic boron nitride (cbn) indexable insert, grade KBN25M, MEGACOAT coated. Suited for hard material.
Specifications
Clearance codeN
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNGA432S00525MEKBN25M
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond 80
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408S01225ME
Length range0.5000 - 0.6000
Manufacturers catalog numberTBZ01457
Manufacturer gradeKBN25M
Material gradeMicrograin
Maximum depth of cut0.1024
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1024
Tolerance codeG
Width in1/2in
Wiper edgeNo
