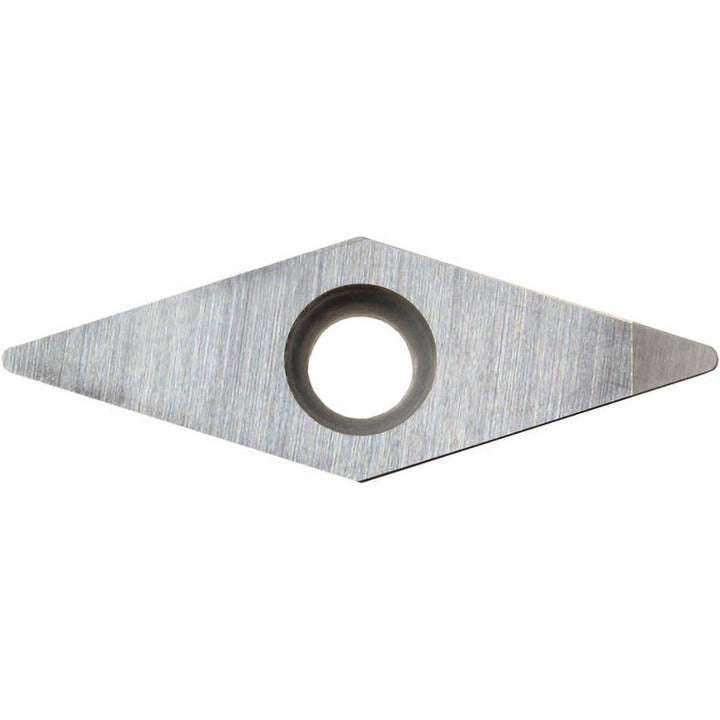

VBGW110302T00815SE Cubic Boron Nitride (CBN) Insert, Grade KBN25M, MEGACOAT - Kyocera TBZ05520
MFR# TBZ05520ISO/ANSI# VBGW2205T00315SEKBN25MSeries ISOI
$36.79List $52.94
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeKBN25M
MaterialCubic Boron Nitride (CBN)
CoatingMEGACOAT
Description
The Kyocera TBZ05520 is a VBGW110302T00815SE cubic boron nitride (cbn) indexable insert, grade KBN25M, MEGACOAT coated. Suited for hard material.
Specifications
Clearance codeB
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle35degree
Industry standard numberVBGW2205T00315SEKBN25M
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8720
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond 35
Insert size code2205
Insert styleVBGW
Insert thickness in1/8
Iso codeVBGW110302T00815SE
Length range0.7000 - 10.0000
Manufacturers catalog numberTBZ05520
Manufacturer gradeKBN25M
Material gradeMicrograin
Maximum depth of cut0.1102
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges1
Primary workpiece materialHard Material
RakePositive
Relief angle5
Single or multi tippedSingle Tipped
StandardsANSI; ISO
Tip length0.1102
Tolerance codeG
Width in1/4in
Wiper edgeNo
