Kyocera

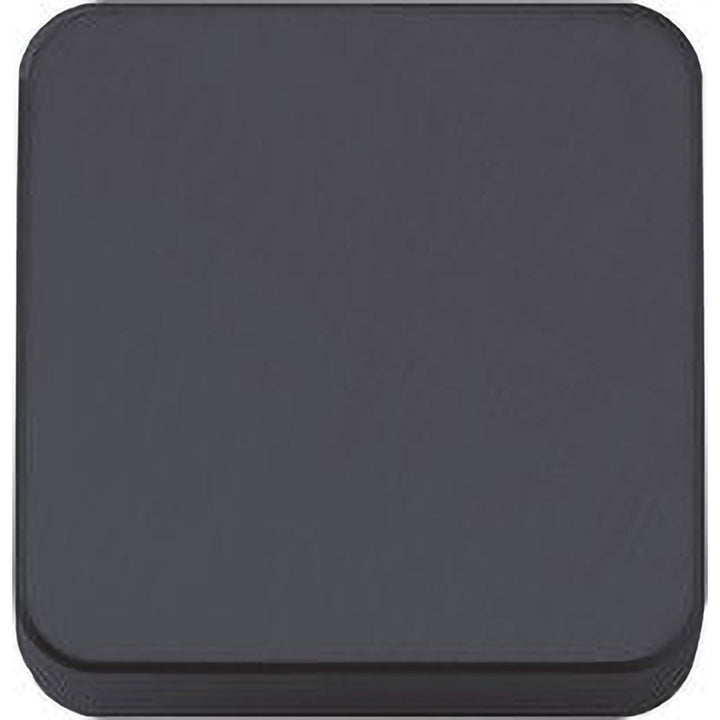

SNGN120408T02025 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR00150
MFR# TCR00150ISO/ANSI# SNG432T00825A65Series ISOI
$11.66List $16.78
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCR00150 is a SNGN120408T02025 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle90degree
Industry standard numberSNG432T00825A65
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeSquare
Insert size code432
Insert styleSNG
Insert thickness in3/16
Iso codeSNGN120408T02025
Length range0.5000 - 0.6000
Manufacturers catalog numberTCR00150
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.1667
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
