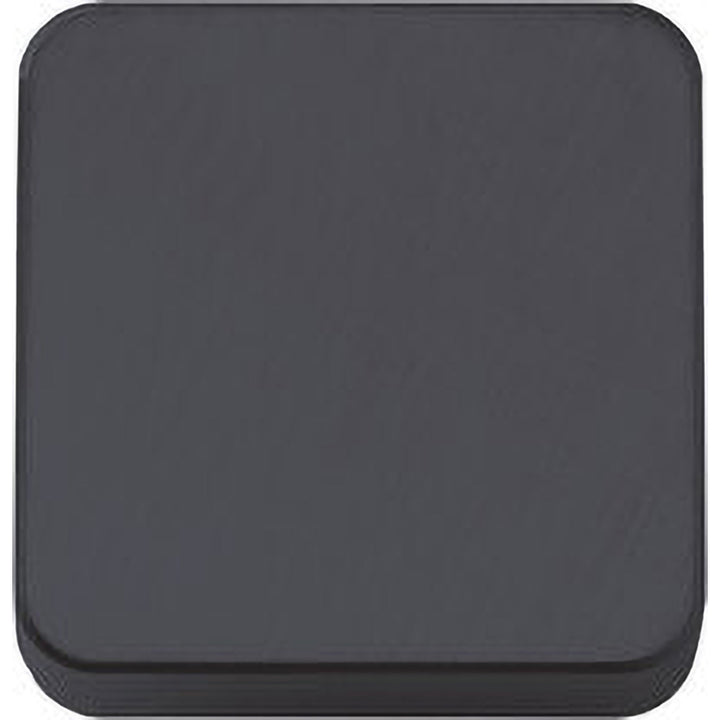

SNGN120412T02025 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR00160

Kyocera

SNGN120412T02025 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR00160

MFR# TCR00160ISO/ANSI# SNG433T00825A65Series ISOI

$11.87List $16.78 Save 29%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeA65
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCR00160 is a SNGN120412T02025 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.

Specifications

Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in3/64
Full radiusNo
Included angle90degree
Industry standard numberSNG433T00825A65
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeSquare
Insert size code433
Insert styleSNG
Insert thickness in3/16
Iso codeSNGN120412T02025
Length range0.5000 - 0.6000
Manufacturers catalog numberTCR00160
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.1667
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
