Kyocera

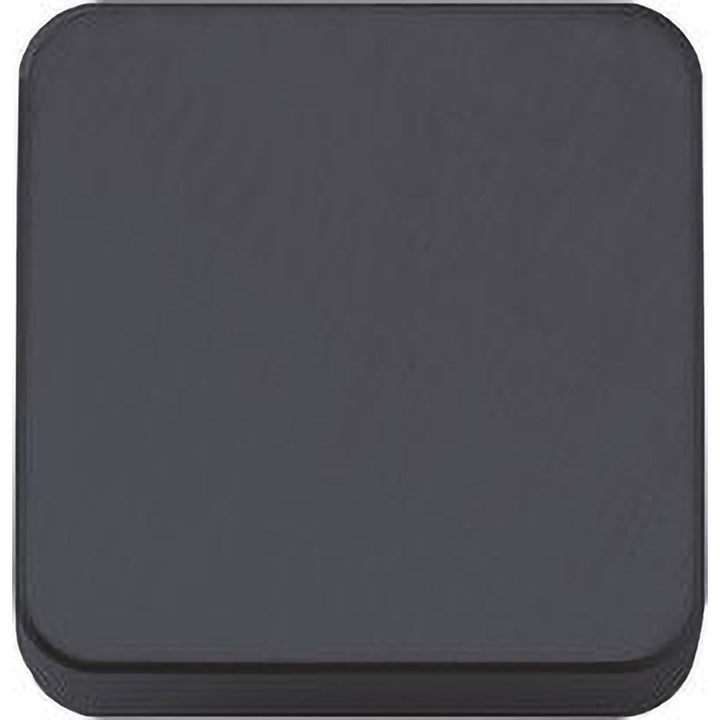

SNGN120712T02025 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR00260
MFR# TCR00260ISO/ANSI# SNG453T00825A65Series ISOI
$16.98List $24.44
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeA65
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCR00260 is a SNGN120712T02025 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in3/64
Full radiusNo
Included angle90degree
Industry standard numberSNG453T00825A65
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeSquare
Insert size code453
Insert styleSNG
Insert thickness in5/16
Iso codeSNGN120712T02025
Length range0.5000 - 0.6000
Manufacturers catalog numberTCR00260
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.1667
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
