RCGX090700P20015 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR61110

Kyocera

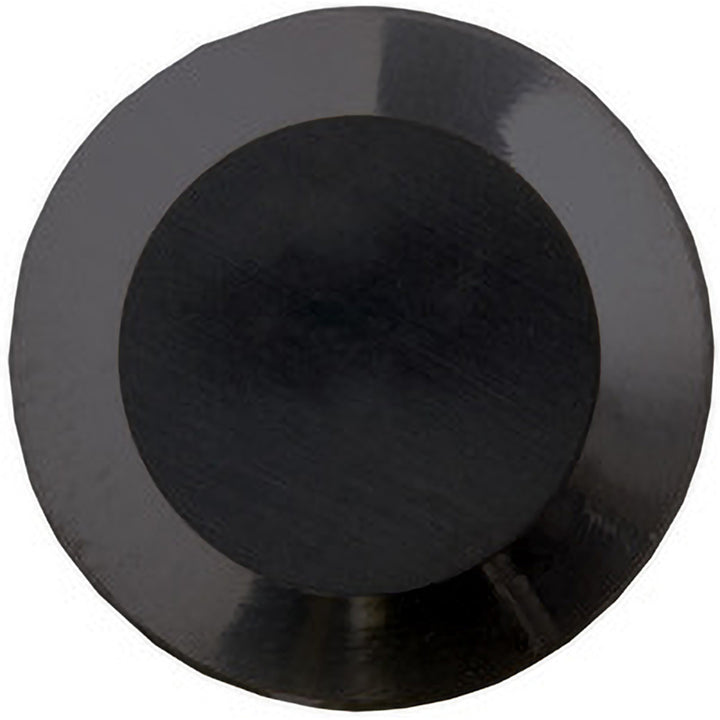

RCGX090700P20015 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR61110

MFR# TCR61110ISO/ANSI# RCGX103T08015625AAA65Series ISOI

$26.83List $38.60 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeRound
GradeA65
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCR61110 is a RCGX090700P20015 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.

Specifications

Clearance codeC
Coating finishAl2O3
Coating processUncoated
Corner radius in3/16
Full radiusYes
Included angle360degree
Industry standard numberRCGX103T08015625AAA65
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length in3/8
Insert materialCeramic
Insert shapeRound
Insert size code103T0
Insert styleRCGX
Insert thickness in5/16
Iso codeRCGX090700P20015
Length range0.3000 - 0.4000
Manufacturers catalog numberTCR61110
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.1875
Multi use applicationExternal Turning; Facing; Roll Machining; Undercutting
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
