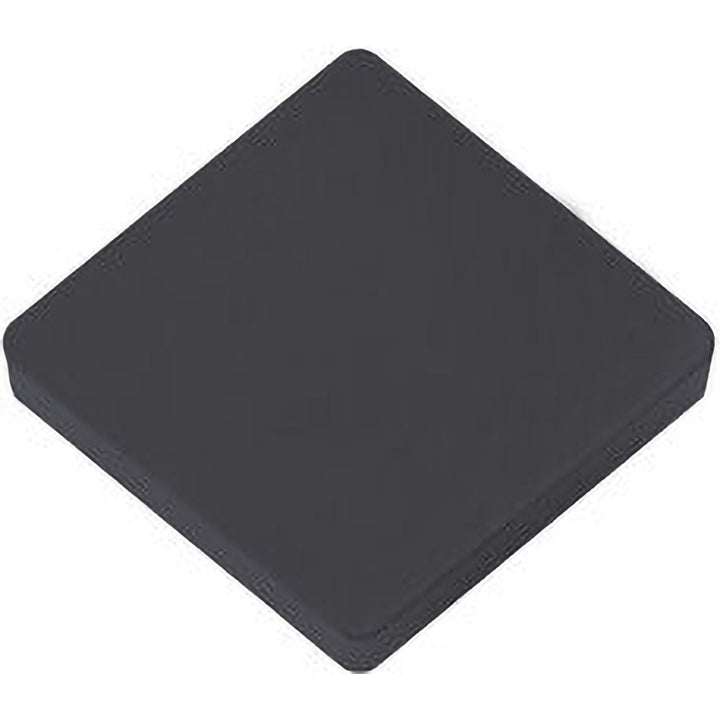

CNG432T00825 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR89020

Kyocera

CNG432T00825 Ceramic Insert, Grade A65, Al2O3 - Kyocera TCR89020

MFR# TCR89020ISO/ANSI# CNG432T00825A65Series ISOI

$15.73List $22.63 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeA65
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCR89020 is a CNG432T00825 ceramic indexable insert, grade A65, Al2O3 coated. Suited for cast iron, hard material.

Specifications

Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle80degree
Industry standard numberCNG432T00825A65
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeDiamond 80
Insert size code432
Insert styleCNG
Insert thickness in3/16
Iso codeCNG432T00825
Length range0.5000 - 0.6000
Manufacturers catalog numberTCR89020
Manufacturer gradeA65
Material gradeK01; K10; H01; H10
Maximum depth of cut0.1667
Multi use applicationExternal Turning; Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
