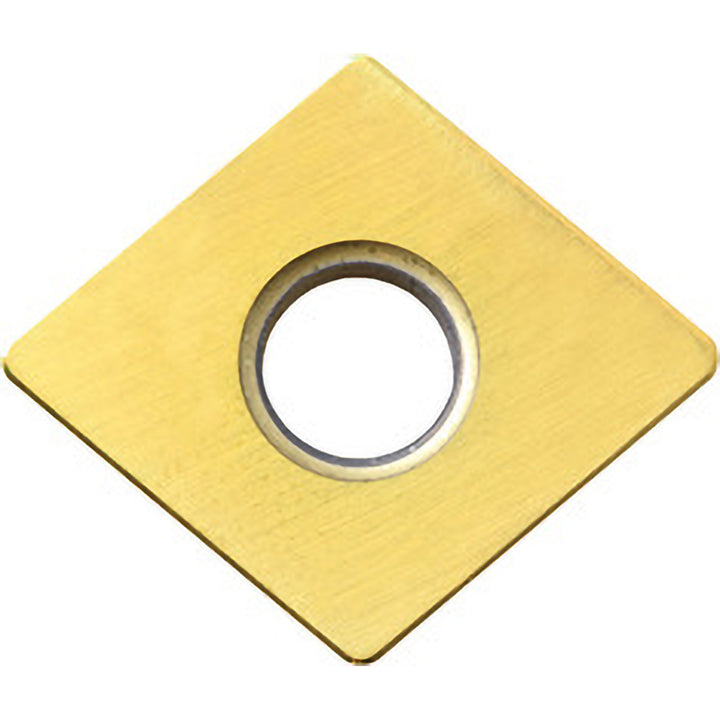

CNGA120404S01525 Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS00811

Kyocera

CNGA120404S01525 Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS00811

MFR# TCS00811ISO/ANSI# CNGA431T00625AAA66NSeries ISOI

$23.06List $33.18 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeA66N
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCS00811 is a CNGA120404S01525 ceramic indexable insert, grade A66N, Al2O3 coated. Suited for hard material.

Specifications

Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/64
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNGA431T00625AAA66N
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCeramic
Insert shapeDiamond 80
Insert size code431
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120404S01525
Length range0.5000 - 0.6000
Manufacturers catalog numberTCS00811
Manufacturer gradeA66N
Material gradeH01; H10
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
