Kyocera

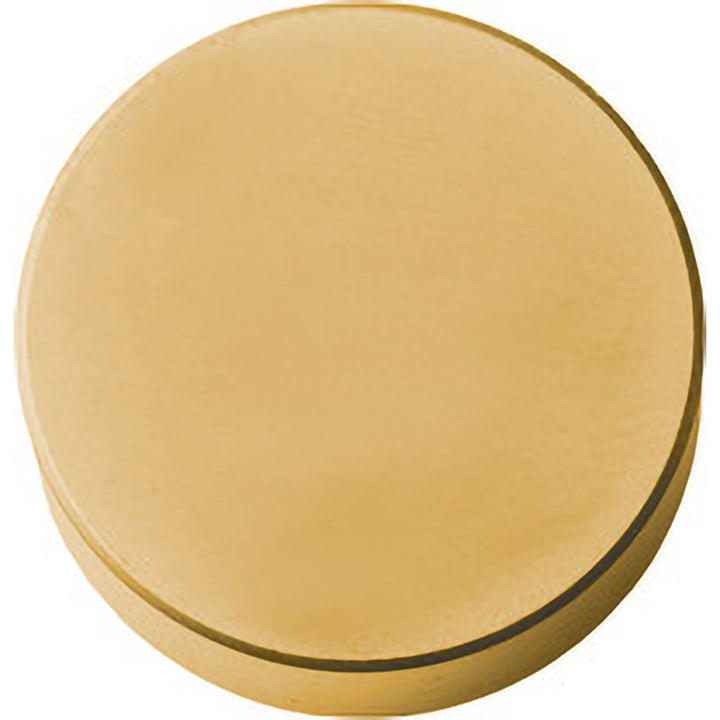

RNGN120700S01525 Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS01050
MFR# TCS01050ISO/ANSI# RNG45T00625AAA66NSeries ISOI
$20.57List $29.60
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeA66N
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCS01050 is a RNGN120700S01525 ceramic indexable insert, grade A66N, Al2O3 coated. Suited for hard material.
Specifications
Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/4
Cutting edge styleChamfered
Full radiusYes
Included angle360degree
Industry standard numberRNG45T00625AAA66N
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeRound
Insert size code45
Insert styleRNG
Insert thickness in5/16
Iso codeRNGN120700S01525
Length range0.5000 - 0.6000
Manufacturers catalog numberTCS01050
Manufacturer gradeA66N
Material gradeH01; H10
Maximum depth of cut0.2500
Multi use applicationCopying; External Turning; Facing
Multi use toolYes
Number of cutting edges8
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
