Kyocera

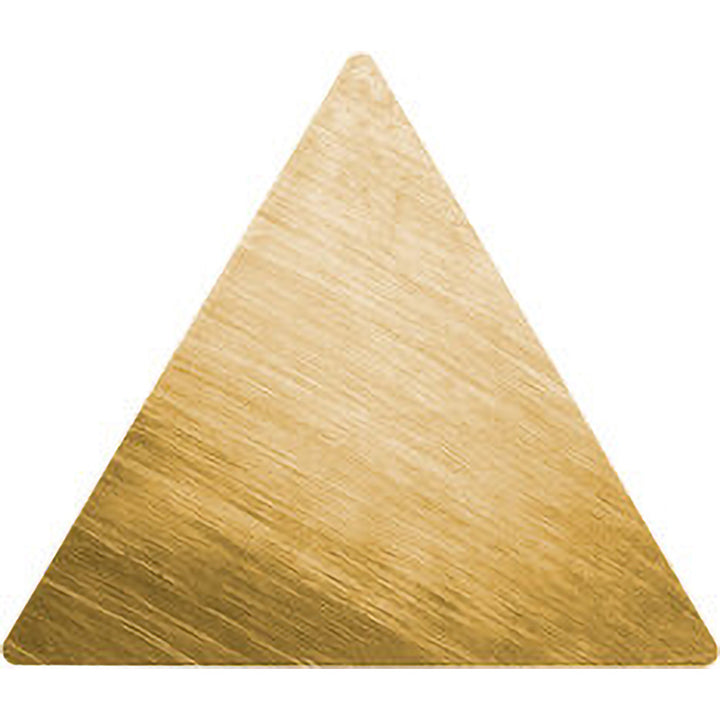

TPG222T00320A66N Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS01223
MFR# TCS01223ISO/ANSI# TPG222T00320A66NSeries ISOI
$18.44List $26.54
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeA66N
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCS01223 is a TPG222T00320A66N ceramic indexable insert, grade A66N, Al2O3 coated. Suited for hard material.
Specifications
Clearance codeP
Coating finishAl2O3
Coating processPVD
Corner radius in1/32
Full radiusNo
Included angle60degree
Industry standard numberTPG222T00320A66N
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.8668
Insert materialCeramic
Insert shapeTriangle
Insert size code222
Insert styleTPG
Insert thickness in1/8
Iso codeTPG222T00320A66N
Length range0.7000 - 10.0000
Manufacturers catalog numberTCS01223
Manufacturer gradeA66N
Material gradeH01; H10
Maximum depth of cut0.2889
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialHard Material
RakePositive
Relief angle11
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width0.8668in
Wiper edgeNo
