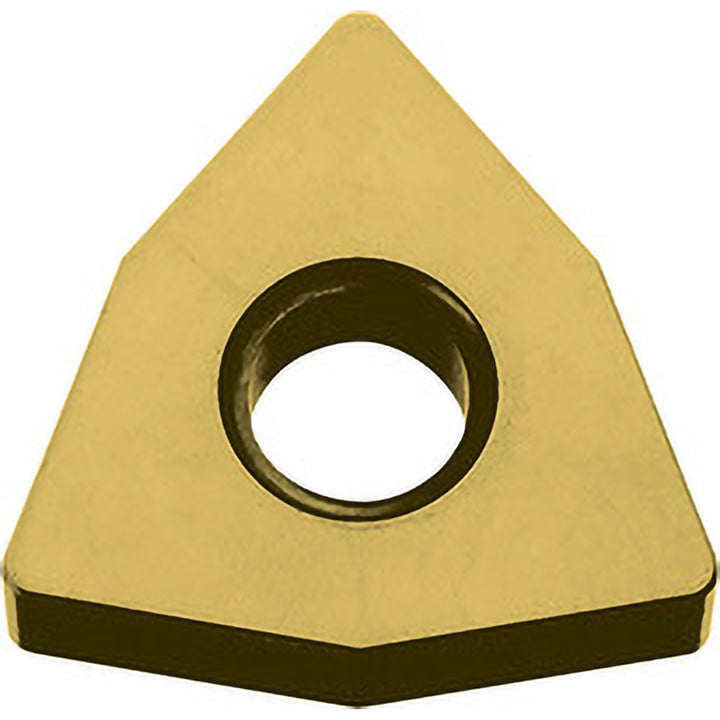

WNGA080404T01525 Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS61100

Kyocera

WNGA080404T01525 Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS61100

MFR# TCS61100ISO/ANSI# WNGA431T00625A66NSeries ISOI

$27.31List $39.30 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon 80
GradeA66N
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCS61100 is a WNGA080404T01525 ceramic indexable insert, grade A66N, Al2O3 coated. Suited for hard material.

Specifications

Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/64
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberWNGA431T00625A66N
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCeramic
Insert shapeTrigon 80
Insert size code431
Insert styleWNGA
Insert thickness in3/16
Iso codeWNGA080404T01525
Length range0.6500 - 0.7000
Manufacturers catalog numberTCS61100
Manufacturer gradeA66N
Material gradeH01; H10
Maximum depth of cut0.2280
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges6
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width0.6840in
Wiper edgeNo
