Kyocera

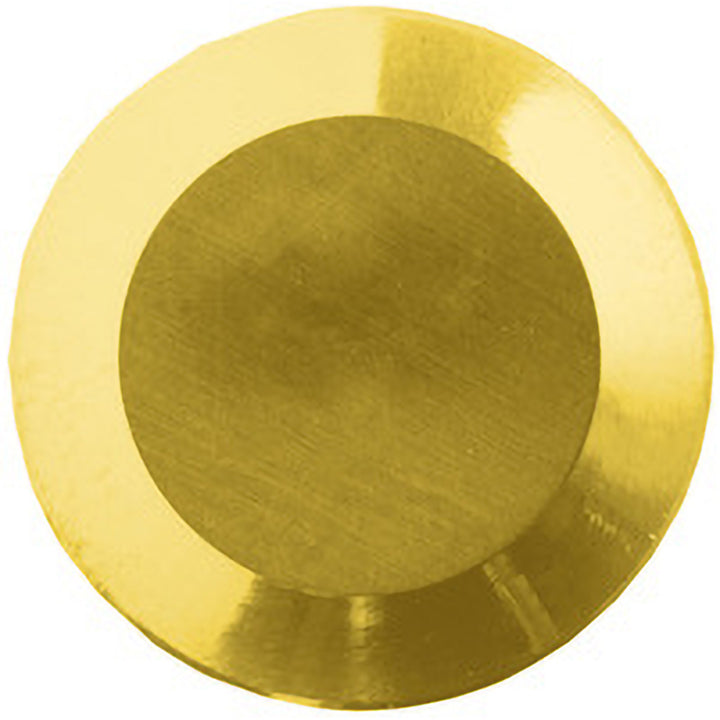

RCGX090700P20015 Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS61118
MFR# TCS61118ISO/ANSI# RCGX103T08015625AAA66NSeries ISOI
$29.95List $42.34
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRound
GradeA66N
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCS61118 is a RCGX090700P20015 ceramic indexable insert, grade A66N, Al2O3 coated. Suited for hard material.
Specifications
Clearance codeC
Coating finishAl2O3
Coating processPVD
Corner radius in3/16
Full radiusYes
Included angle360degree
Industry standard numberRCGX103T08015625AAA66N
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length in3/8
Insert materialCeramic
Insert shapeRound
Insert size code103T0
Insert styleRCGX
Insert thickness in5/16
Iso codeRCGX090700P20015
Length range0.3000 - 0.4000
Manufacturers catalog numberTCS61118
Manufacturer gradeA66N
Material gradeH01; H10
Maximum depth of cut0.1875
Multi use applicationExternal Turning; Facing; Roll Machining; Undercutting
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
