Kyocera

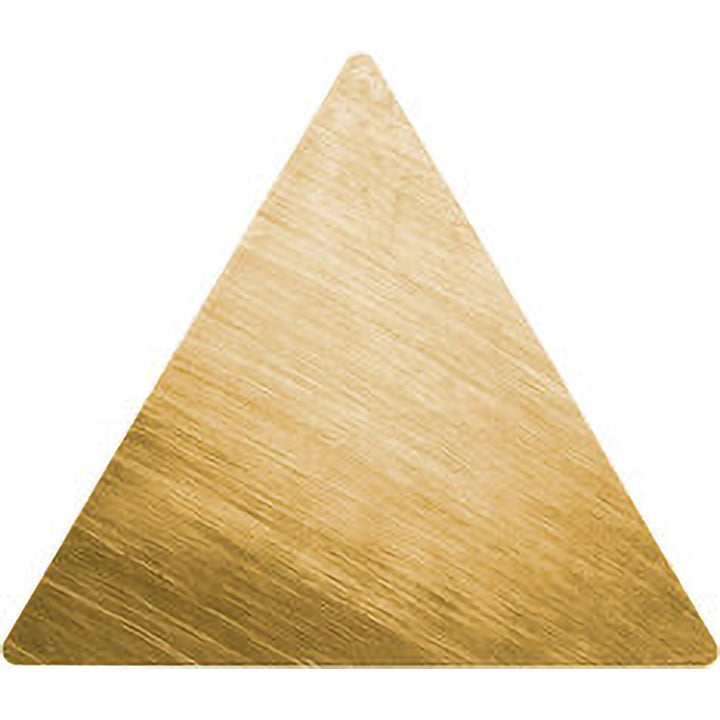

TPG321T00320A66N Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS61240
MFR# TCS61240ISO/ANSI# TPG321T00320A66NSeries ISOI
$18.81List $27.07
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeA66N
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCS61240 is a TPG321T00320A66N ceramic indexable insert, grade A66N, Al2O3 coated. Suited for hard material.
Specifications
Clearance codeP
Coating finishAl2O3
Coating processPVD
Corner radius in1/64
Full radiusNo
Included angle60degree
Industry standard numberTPG321T00320A66N
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6501
Insert materialCeramic
Insert shapeTriangle
Insert size code321
Insert styleTPG
Insert thickness in1/8
Iso codeTPG321T00320A66N
Length range0.6500 - 0.7000
Manufacturers catalog numberTCS61240
Manufacturer gradeA66N
Material gradeH01; H10
Maximum depth of cut0.2167
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialHard Material
RakePositive
Relief angle11
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
