Kyocera

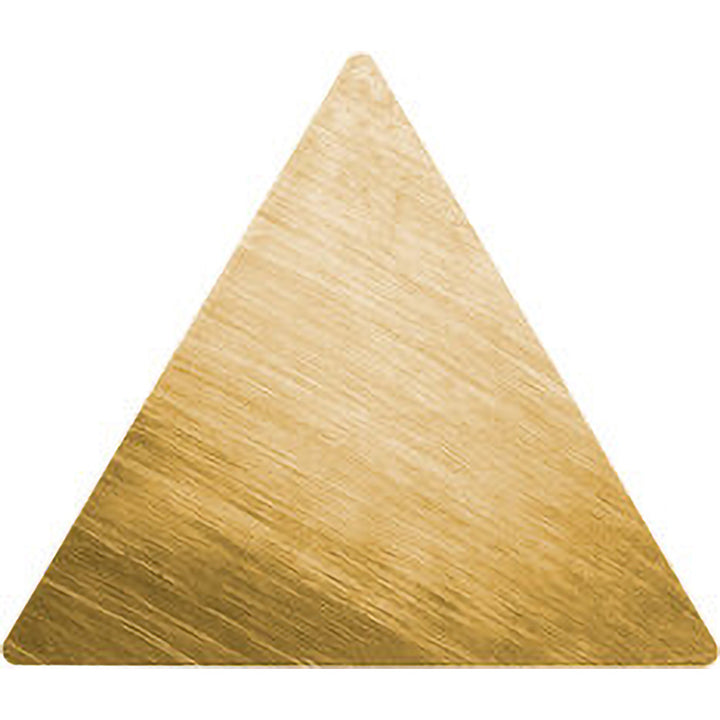

TPGN160308T00820 Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS61250
MFR# TCS61250ISO/ANSI# TPG322T00320A66NSeries ISOI
$19.15List $27.07
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeA66N
MaterialCeramic
CoatingAl2O3
Description
The Kyocera TCS61250 is a TPGN160308T00820 ceramic indexable insert, grade A66N, Al2O3 coated. Suited for hard material.
Specifications
Clearance codeP
Coating finishAl2O3
Coating processPVD
Corner radius in1/32
Full radiusNo
Included angle60degree
Industry standard numberTPG322T00320A66N
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6501
Insert materialCeramic
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeTPGN160308T00820
Length range0.6500 - 0.7000
Manufacturers catalog numberTCS61250
Manufacturer gradeA66N
Material gradeH01; H10
Maximum depth of cut0.2167
Multi use applicationBoring; Chamfering; External Turning; Facing
Multi use toolYes
Number of cutting edges3
Primary workpiece materialHard Material
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.6501in
Wiper edgeNo
