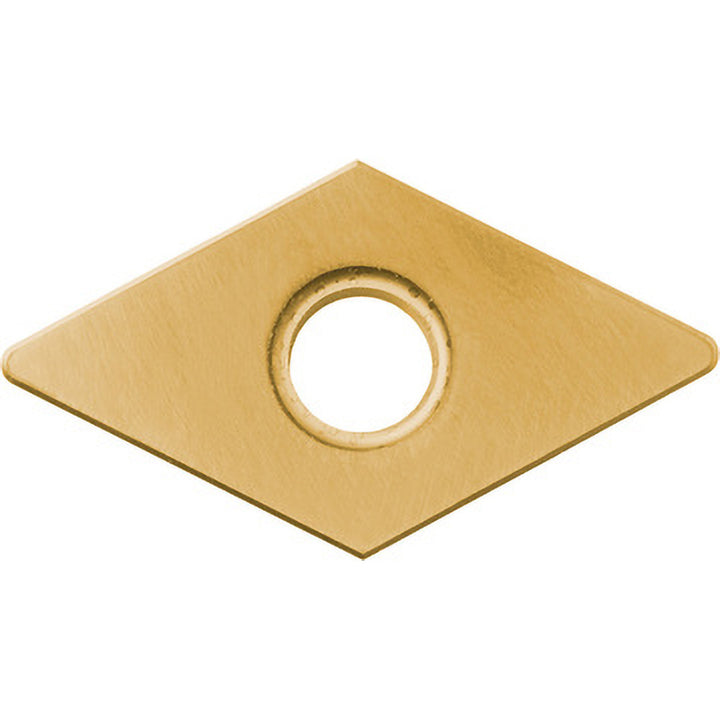

DNGA432T00625 Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS89033

Kyocera

DNGA432T00625 Ceramic Insert, Grade A66N, Al2O3 - Kyocera TCS89033

MFR# TCS89033ISO/ANSI# DNGA432T00625A66NSeries ISOI

$28.65List $41.22 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeA66N
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCS89033 is a DNGA432T00625 ceramic indexable insert, grade A66N, Al2O3 coated. Suited for hard material.

Specifications

Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/32
Full radiusNo
Hole diameter0.2032
Included angle55degree
Industry standard numberDNGA432T00625A66N
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.1820
Insert materialCeramic
Insert shapeDiamond 55
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA432T00625
Length range0.7000 - 10.0000
Manufacturers catalog numberTCS89033
Manufacturer gradeA66N
Material gradeH01; H10
Maximum depth of cut0.3940
Multi use applicationBoring; Copying; External Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
