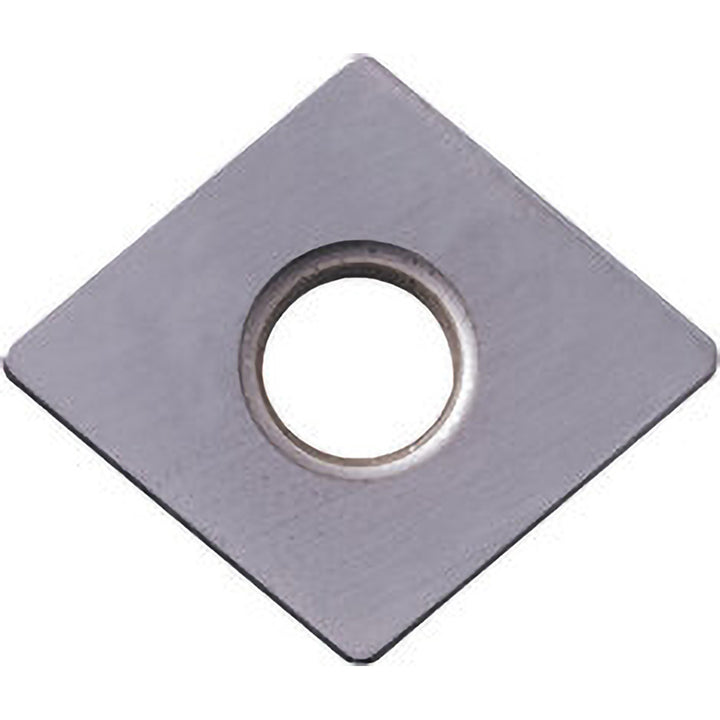

CNGA120408S02025 Ceramic Insert, Grade PT600M, Al2O3 - Kyocera TCV01006

Kyocera

CNGA120408S02025 Ceramic Insert, Grade PT600M, Al2O3 - Kyocera TCV01006

MFR# TCV01006ISO/ANSI# CNGA432S00825PT600MSeries ISOI

$23.06List $33.18 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradePT600M
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCV01006 is a CNGA120408S02025 ceramic indexable insert, grade PT600M, Al2O3 coated. Suited for hard material.

Specifications

Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/32
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNGA432S00825PT600M
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCeramic
Insert shapeDiamond 80
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408S02025
Length range0.5000 - 0.6000
Manufacturers catalog numberTCV01006
Manufacturer gradePT600M
Material gradeK01; K10
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
