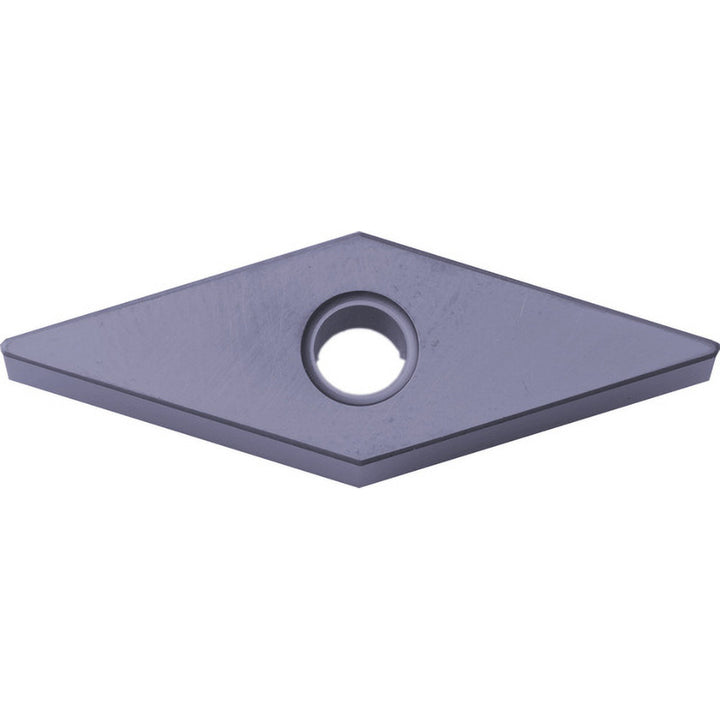

VNGA160408S02025 Ceramic Insert, Grade PT600M, Al2O3 - Kyocera TCV08006

Kyocera

VNGA160408S02025 Ceramic Insert, Grade PT600M, Al2O3 - Kyocera TCV08006

MFR# TCV08006ISO/ANSI# VNGA332S00825PT600MSeries ISOI

$30.34List $43.66 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradePT600M
MaterialCeramic
CoatingAl2O3

Description

The Kyocera TCV08006 is a VNGA160408S02025 ceramic indexable insert, grade PT600M, Al2O3 coated. Suited for hard material.

Specifications

Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGA332S00825PT600M
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCeramic
Insert shapeDiamond 35
Insert size code332
Insert styleVNGA
Insert thickness in3/16
Iso codeVNGA160408S02025
Length range0.7000 - 10.0000
Manufacturers catalog numberTCV08006
Manufacturer gradePT600M
Material gradeK01; K10
Maximum depth of cut0.4360
Multi use applicationCopying; External Turning; Facing; Undercutting
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
