Kyocera

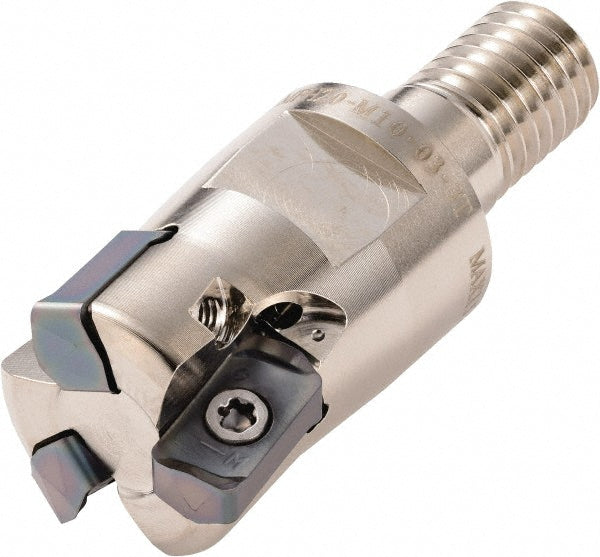

Indexable End Mills - Kyocera THN07516
MFR# THN07516Cat# MFH 25-M12-03-5T
$418.26List $518.41
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Kyocera THN07516 indexable end mills.
Specifications
Compatible insert styleLOGU 030310ER-GM
Coolant throughYes
Cutting diameter0.9842
Functional length (mm)35.00
Head length1.3780
Insert holding methodScrew
Manufacturers catalog numberMFH 25-M12-03-5T
Maximum cutting diameter0.9843
Maximum depth of cut0.0394
Maximum rpm13400
Minimum cutting diameter (mm)17.00
Modular connection sizeM12
Number of cutter inserts5
Number of flutes5
Overall length2.2441
Shank diameter0.4921
Shank typeModular Connection
Toolholder styleMFH
Weldon flatNo
