Kyocera

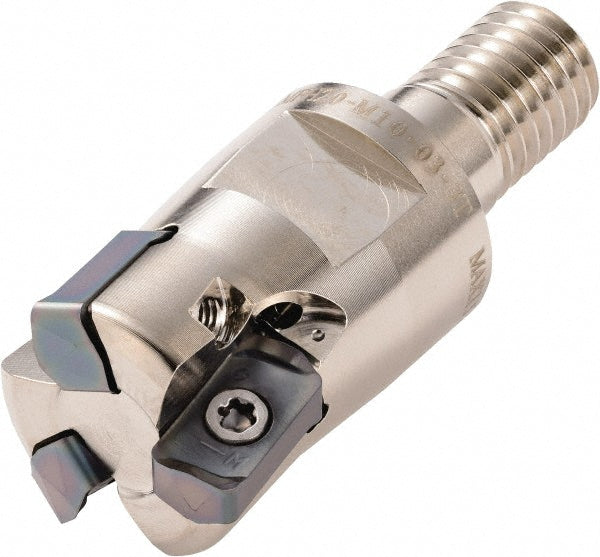

Indexable End Mills - Kyocera THN07576
MFR# THN07576Cat# MFH 1250-M16-03-5T
$499.40List $618.98
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Kyocera THN07576 indexable end mills.
Specifications
Compatible insert styleLOGU 030310ER-GM
Coolant throughYes
Cutting diameter1.2500
Functional length1.5748
Head length2.7500
Insert holding methodScrew
Manufacturers catalog numberMFH 1250-M16-03-5T
Maximum cutting diameter in1-1/4
Maximum depth of cut0.0390
Maximum rpm11400
Minimum cutting diameter0.9350
Modular connection sizeM16
Number of cutter inserts5
Number of flutes5
Overall length5.0700
Shank diameter0.6693
Shank typeModular
Toolholder styleMFH
Weldon flatNo
