Kyocera

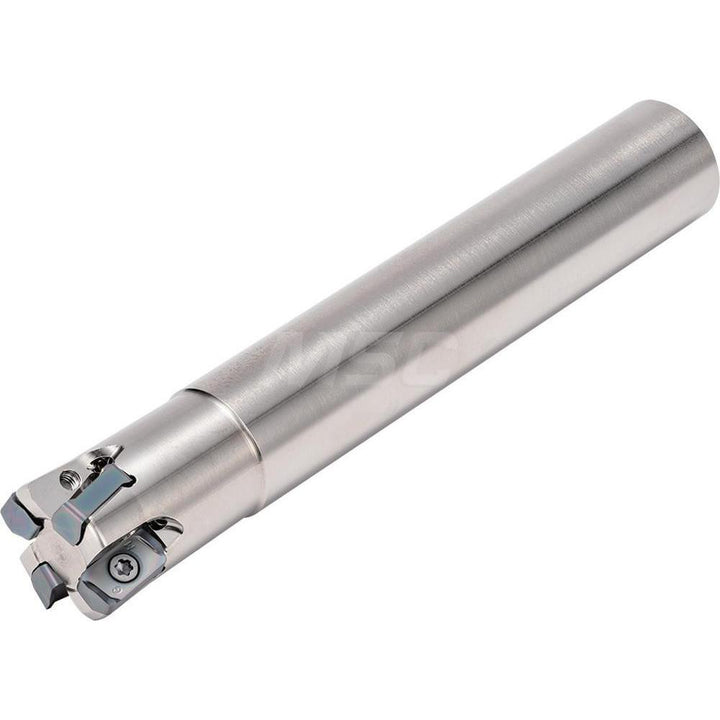

Indexable End Mills - Kyocera THN07720
MFR# THN07720Cat# MFH 0625-W625-03-2T-3
$371.52List $460.48
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Kyocera THN07720 indexable end mills.
Specifications
Compatible insert styleLOGU 030310ER-GM
Coolant throughYes
Cutting diameter0.6250
Functional length3.1960
Head length1.2500
Insert holding methodScrew
Manufacturers catalog numberMFH 0625-W625-03-2T-3
Maximum cutting diameter in5/8
Maximum depth of cut0.0390
Maximum ramping angle0.80
Maximum rpm18800
Minimum cutting diameter0.3100
Number of cutter inserts2
Number of flutes2
Overall length3.1960
Shank diameter in5/8
Shank typeWeldon Flat
Toolholder styleMFH
Tool applicationFacing; Plunging; Ramping; Shouldering; Slotting
Weldon flatYes
