Kyocera

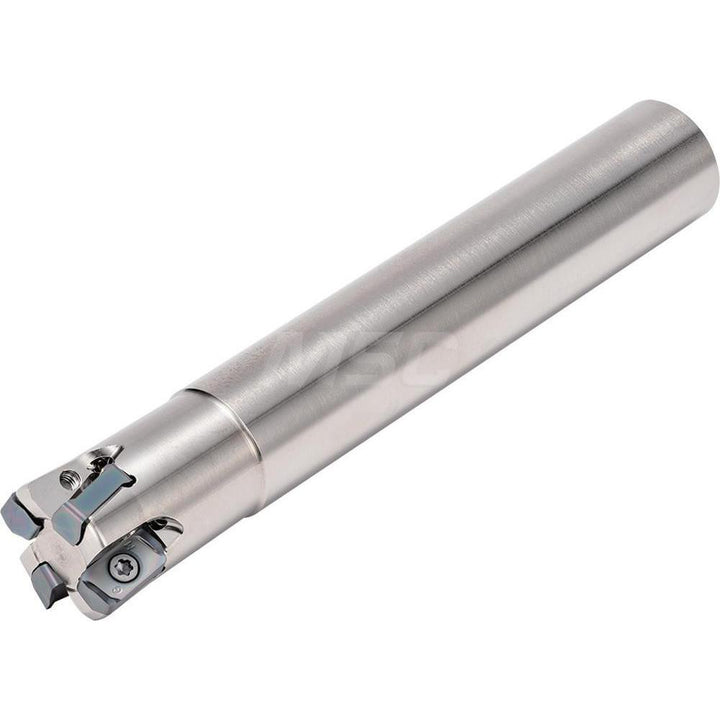

Indexable End Mills - Kyocera THN07726
MFR# THN07726Cat# MFH 1000-W100-03-5T47
$443.91List $550.19
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Kyocera THN07726 indexable end mills.
Specifications
Compatible insert styleLOGU 030310ER-GM
Coolant throughYes
Cutting diameter1.0000
Functional length4.8200
Head length2.5000
Insert holding methodScrew
Manufacturers catalog numberMFH 1000-W100-03-5T47
Maximum cutting diameter in1
Maximum depth of cut0.0390
Maximum ramping angle2.80
Maximum rpm13400
Minimum cutting diameter0.6850
Number of cutter inserts5
Number of flutes5
Overall length4.8200
Shank diameter in1
Shank typeWeldon
Toolholder styleMFH
Tool applicationFacing; Plunging; Ramping; Shouldering; Slotting
Weldon flatYes
