Kyocera

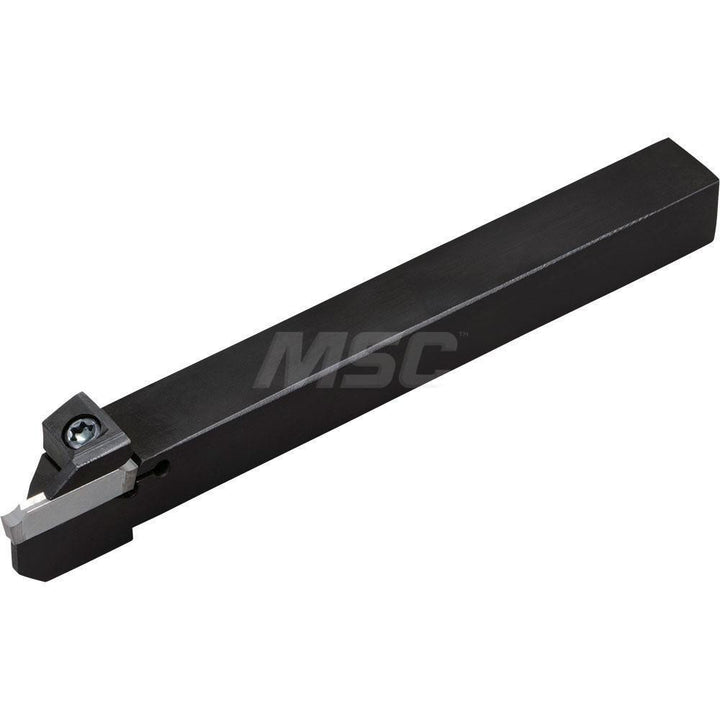

Indexable Grooving - Kyocera THT05170
MFR# THT05170Cat# KGDR102JXSeries KGD
$194.80List $241.44
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kyocera THT05170 indexable grooving. Series KGD.
Specifications
Back of bar to cutting edge0.5920
Compatible insert size codeGDG2; GDG3; GDGS2; GDGS3; GDM2; GDM3; GDMS2; GDMS3
Complete insert compatibilityGDG 2520N-020GS; GDG 3020N-020GS; GDG 3520N-020GS; GDG 4020N-040GS; GDG 5020N-040GS; GDG 6020N-040GS; GDM 2020N-020PH; GDM 2420N-020GL; GDM 2420N-020GM; GDM 3020N-020GL; GDM 3020N-020GM; GDM 3020N-030PH; GDM 3020N-040GL; GDM 3020N-040GM; GDM 3020N-150R-CM
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height0.8020
Head length0.9650
Insert compatibilityGD.. 2020N..; GD.. 2020R..; GD.. 2220N..; GD.. 2420N..; GD.. 2520N..; GD.. 2520R..; GD.. 3020N..; GD.. 3020R..; GD.. 3520N..; GD.. 4020N..; GD.. 4020R..; GD.. 5020N..; GD.. 6020N..; GD.. 8030N..
Insert holding methodScrew
Internal or externalExternal
Manufacturers catalog numberKGDR102JX
Maximum bore depth0.9650
Maximum depth of cut1.1811
Maximum groove width0.1180
Minimum groove width0.0780
Multi use toolYes
Overall length4.7500
Shank height0.6250
Shank length5.7150
Shank width0.6250
StandardsANSI; ISO
Toolholder materialSteel
Toolholder styleKGD
Toolholder typeExternal Grooving
