Kyocera

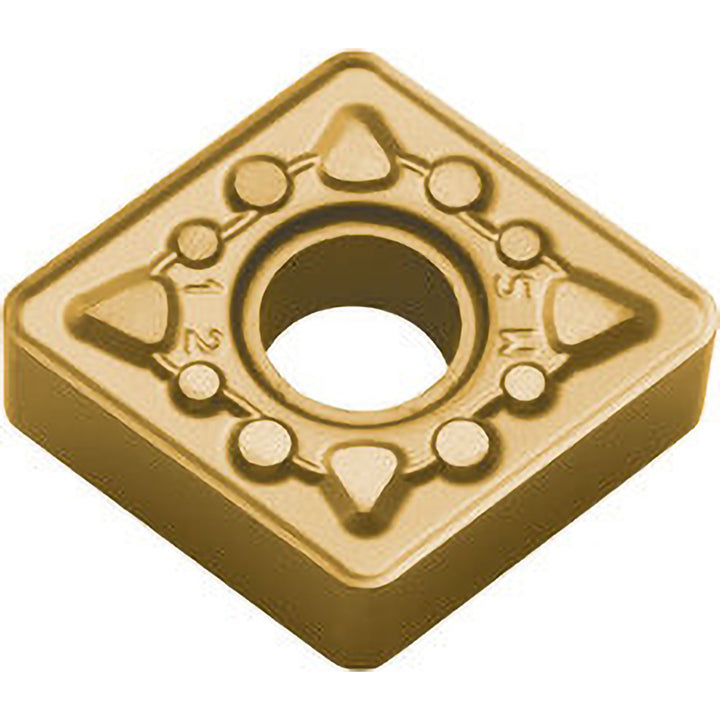

CNMG120408MS Carbide Insert, Grade CA6515, TiCN - Kyocera TJU00922
MFR# TJU00922ISO/ANSI# CNMG432MSCA6515Series ISOI
$12.62List $18.17
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeCA6515
MaterialCarbide
CoatingTiCN
Description
The Kyocera TJU00922 is a CNMG120408MS carbide indexable insert, grade CA6515, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMS
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2032
Included angle80degree
Industry standard numberCNMG432MSCA6515
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1-1/64
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408MS
Length range0.5000 - 0.6000
Manufacturers catalog numberTJU00922
Manufacturer gradeCA6515
Material gradeM10; S10; S20
Maximum depth of cut0.1667
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle-19
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
