Kyocera

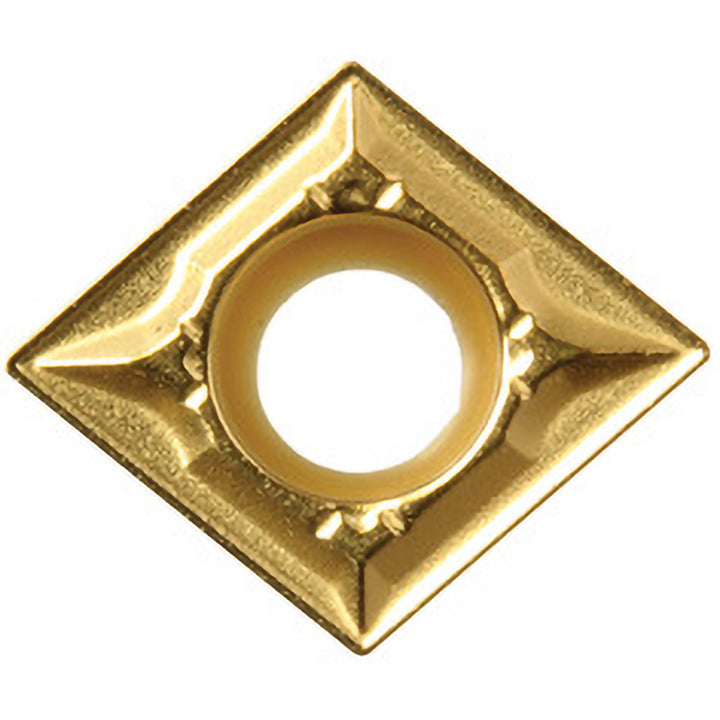

CCMT060204GK Carbide Insert, Grade CA6525, TiCN - Kyocera TJV00436
MFR# TJV00436ISO/ANSI# CCMT2151GKCA6525Series ISOI
$13.51List $19.45
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeCA6525
MaterialCarbide
CoatingTiCN
Description
The Kyocera TJV00436 is a CCMT060204GK carbide indexable insert, grade CA6525, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerGK
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle80degree
Industry standard numberCCMT2151GKCA6525
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length in1-1/64
Insert materialCarbide
Insert shapeDiamond 80
Insert size code2151
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204GK
Length range0.0000 - 0.3000
Manufacturers catalog numberTJV00436
Manufacturer gradeCA6525
Material gradeM20; S20; S30
Maximum depth of cut0.0833
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle17
Relief angle7
Secondary workpiece materialSuperalloy
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
