Kyocera

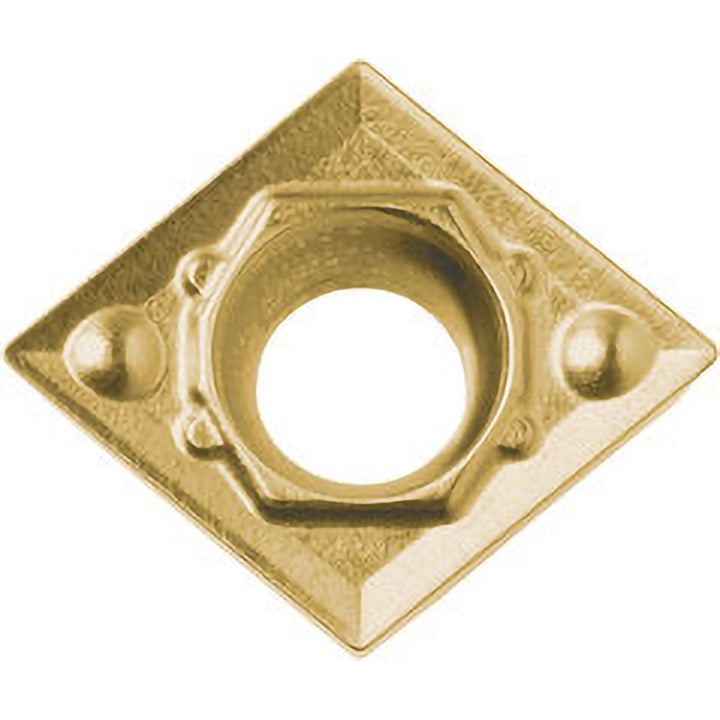

CCMT09T304HQ Carbide Insert, Grade CA6525, TiCN - Kyocera TJV00483
MFR# TJV00483ISO/ANSI# CCMT09T304Series ISOI
$13.28List $18.78
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeCA6525
MaterialCarbide
CoatingTiCN
Description
The Kyocera TJV00483 is a CCMT09T304HQ carbide indexable insert, grade CA6525, TiCN coated. Suited for stainless steel.
Specifications
Ansi insert codeCCMT3251
Ansi size code3251
Chip breakerHQ
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCMT3251HQCA6525
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in1-1/64
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3251
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304HQ
Iso insert codeCCMT09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog numberTJV00483
Manufacturer gradeCA6525
Material gradeM20; S20; S30
Maximum depth of cut0.1250
Maximum depth of cut frac in1/8
Multi use applicationBoring; External Turning; Chamfering; Facing; Internal Facing
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialSuperalloy
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
