Kyocera

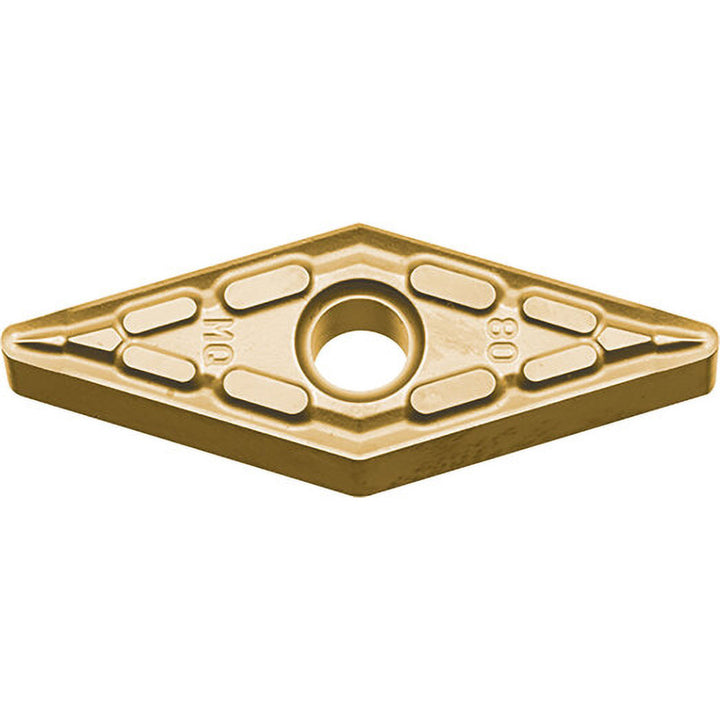

VNMG160408MQ Carbide Insert, Grade CA6525, TiCN - Kyocera TJV07627
MFR# TJV07627ISO/ANSI# VNMG332MQCA6525Series ISOI
$18.81List $27.07
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeCA6525
MaterialCarbide
CoatingTiCN
Description
The Kyocera TJV07627 is a VNMG160408MQ carbide indexable insert, grade CA6525, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMQ
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG332MQCA6525
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408MQ
Length range0.7000 - 10.0000
Manufacturers catalog numberTJV07627
Manufacturer gradeCA6525
Material gradeM20; S20; S30
Maximum depth of cut0.4360
Multi use applicationCopying; External Turning; Facing; Undercutting
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle-15
Relief angle0
Secondary workpiece materialSuperalloy
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
