Kyocera

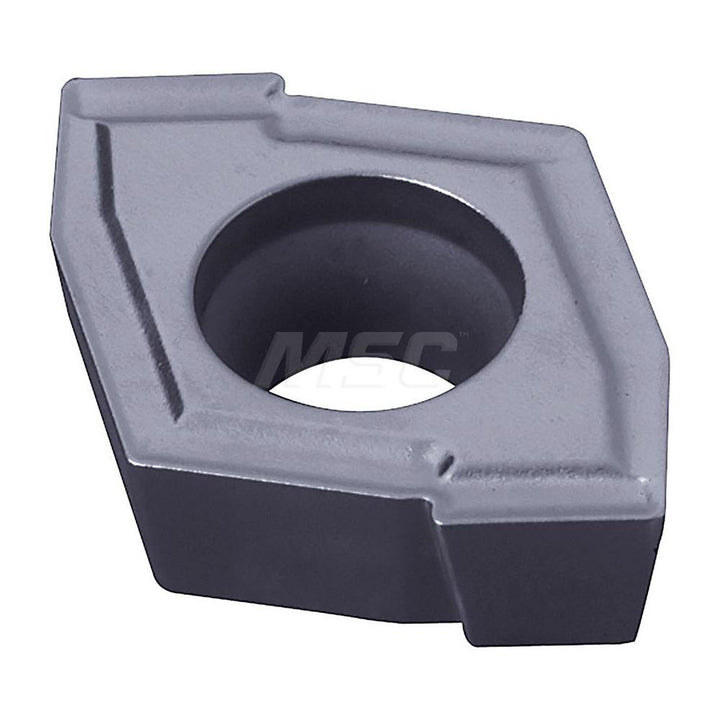

ZCMT12T306 Solid Carbide Insert, Grade PR1210, MEGACOAT - Kyocera TKA09474
MFR# TKA09474ISO/ANSI# ZCMT12T306Series DRZ
$25.22List $36.29
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1210
MaterialSolid Carbide
CoatingMEGACOAT
Description
The Kyocera TKA09474 is a ZCMT12T306 solid carbide indexable insert, grade PR1210, MEGACOAT coated. Suited for cast iron.
Specifications
Ansi codeZCMT12T306 PR1210
Coating finishMEGACOAT
Coating processPVD
Corner radius0.0236
Cutting directionRight Hand
Hole diameter0.2205
Insert materialSolid Carbide
Insert size12
Insert size code12
Insert styleZCMT
Iso codeZCMT12T306
Length0.5630
Manufacturer gradePR1210
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Relief angle7
ShapeDiamond
StandardsANSI; ISO
Thickness0.1563
Width0.5039
