Kyocera

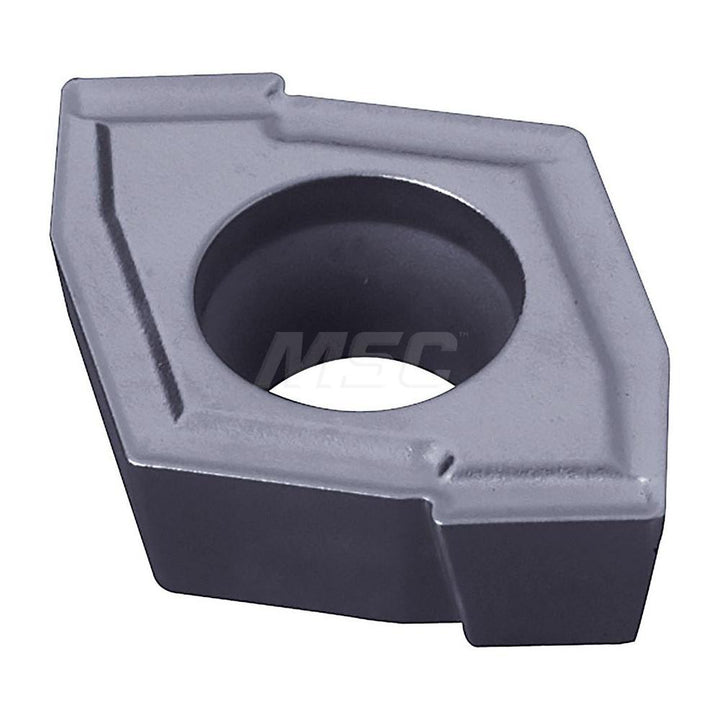

ZCMT150408 Solid Carbide Insert, Grade PR1225, Coated - Kyocera TKB09475
MFR# TKB09475ISO/ANSI# ZCMT150408Series DRZ
$27.78List $39.96
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1225
MaterialSolid Carbide
CoatingCoated
Description
The Kyocera TKB09475 is a ZCMT150408 solid carbide indexable insert, grade PR1225, Coated coated. Suited for stainless steel.
Specifications
Ansi codeZCMT150408 PR1225
Coating finishCoated
Coating processPVD
Corner radius0.0314
Cutting directionRight Hand
Hole diameter0.2205
Insert materialSolid Carbide
Insert size150408
Insert size code15
Insert styleZCMT
Iso codeZCMT150408
Length0.7008
Manufacturer gradePR1225
Material gradeMicrograin
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel
ShapeDiamond
StandardsANSI; ISO
Thickness0.1874
Width0.6220
