Kyocera

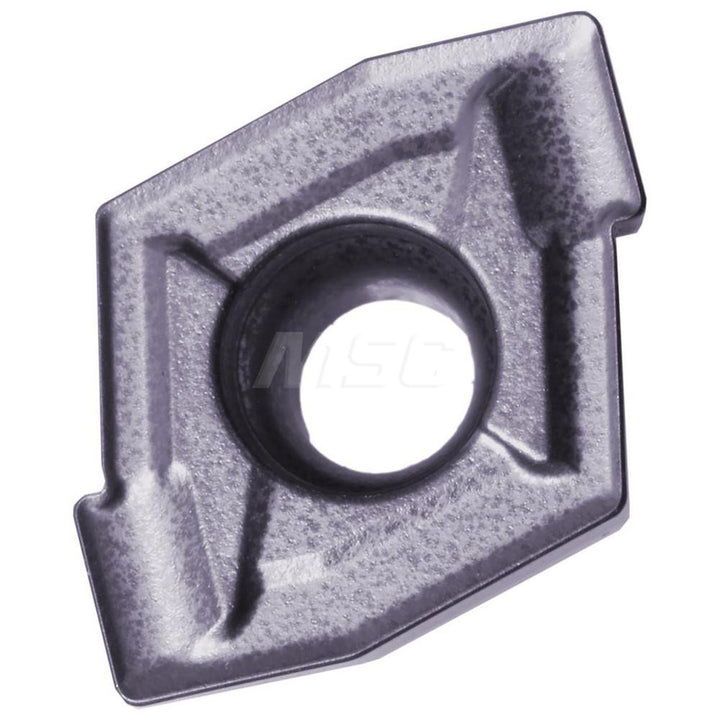

ZCMT12T304SP Solid Carbide Insert, Grade PR1225, MEGACOAT - Kyocera TKB09487
MFR# TKB09487ISO/ANSI# ZCMT12T304SPSeries DRZ
$25.22List $36.29
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1225
MaterialSolid Carbide
CoatingMEGACOAT
Description
The Kyocera TKB09487 is a ZCMT12T304SP solid carbide indexable insert, grade PR1225, MEGACOAT coated. Suited for stainless steel.
Specifications
Ansi codeZCMT12T304SP PR1225
ChipbreakerSP
Coating finishMEGACOAT
Coating processPVD
Corner radius0.0157
Cutting directionRight Hand
Hole diameter0.2205
Insert materialSolid Carbide
Insert size12
Insert size code12
Insert styleZCMT
Iso codeZCMT12T304SP
Length0.5630
Manufacturer gradePR1225
Material gradeMicrograin
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel
ShapeDiamond
StandardsANSI; ISO
Thickness0.1563
Width0.5039
