Kyocera
WCMT06T308 Solid Carbide Insert, Grade PR1230, MEGACOAT - Kyocera TKC09302
MFR# TKC09302ISO/ANSI# WCMT06T308Series OTMD
$17.77List $25.58
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1230
MaterialSolid Carbide
CoatingMEGACOAT
Description

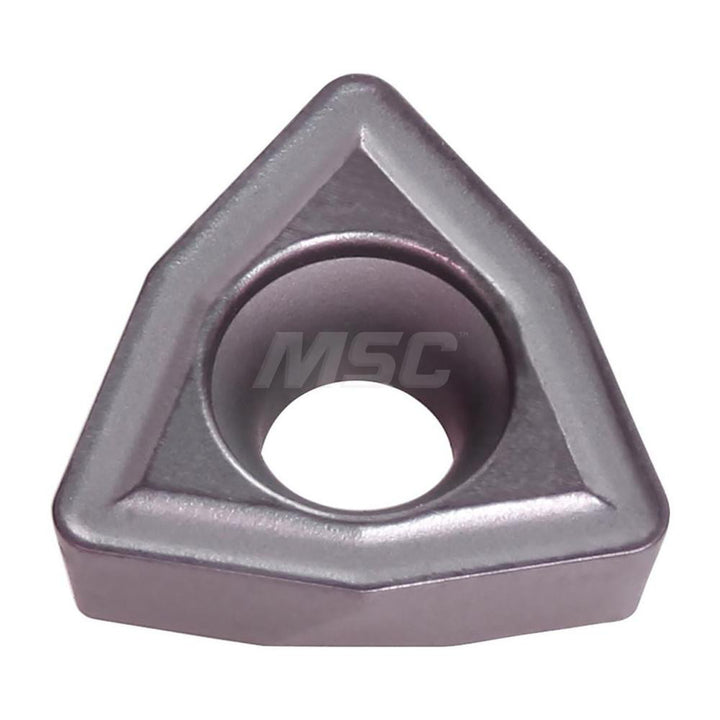

The Kyocera TKC09302 is a WCMT06T308 solid carbide indexable insert, grade PR1230, MEGACOAT coated. Suited for steel.
Specifications
Ansi codeWCMT06T308 PR1230
Coating finishMEGACOAT
Coating processPVD
Corner radius0.8000
Cutting directionRight Hand
Hole diameter0.1457
Included angle degree80
Inscribed circle0.3752
Insert materialSolid Carbide
Insert size06
Insert size code06
Insert styleWCMT
Iso codeWCMT06T308
Manufacturer gradePR1230
Number of cutting edges3
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
ShapeTrigon
StandardsANSI; ISO
Thickness0.1563
