Kyocera

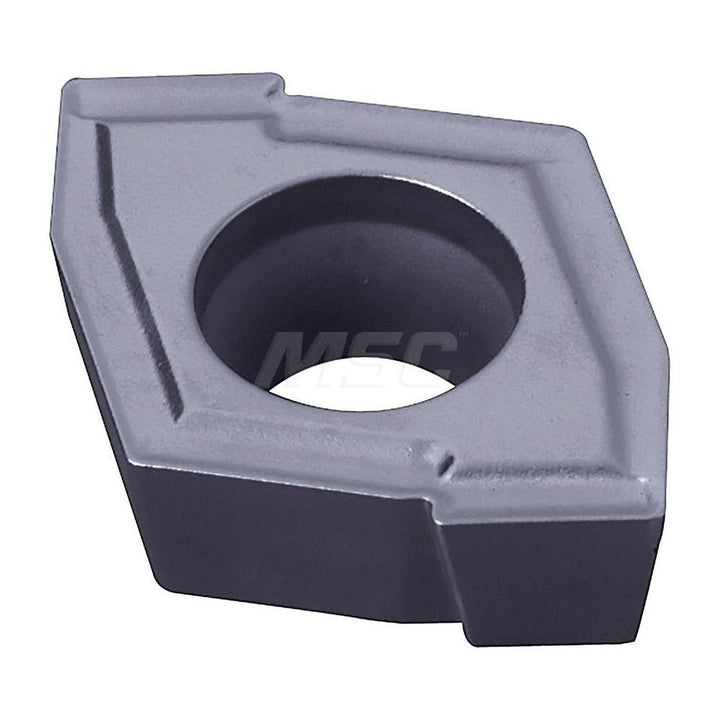

ZCMT06T204 Solid Carbide Insert, Grade PR1230, Coated - Kyocera TKC09471
MFR# TKC09471ISO/ANSI# ZCMT06T204Series DRZ
$19.88List $28.60
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1230
MaterialSolid Carbide
CoatingCoated
Description
The Kyocera TKC09471 is a ZCMT06T204 solid carbide indexable insert, grade PR1230, Coated coated. Suited for steel.
Specifications
Ansi codeZCMT06T204 PR1230
Coating finishCoated
Coating processPVD
Corner radius0.0157
Cutting directionRight Hand
Hole diameter0.0984
Insert materialSolid Carbide
Insert size06
Insert size code06
Insert styleZCMT
Iso codeZCMT06T204
Length0.2756
Manufacturer gradePR1230
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
ShapeDiamond
StandardsANSI; ISO
Thickness0.1102
Width0.2362
