Kyocera

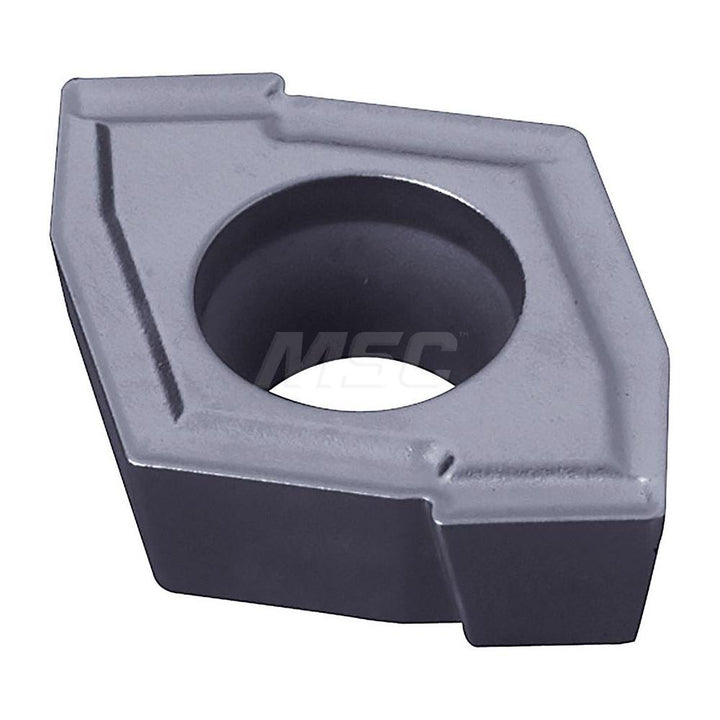

ZCMT080304 Solid Carbide Insert, Grade PR1230, MEGACOAT - Kyocera TKC09472
MFR# TKC09472ISO/ANSI# ZCMT080304Series DRZ
$20.81List $29.95
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1230
MaterialSolid Carbide
CoatingMEGACOAT
Description
The Kyocera TKC09472 is a ZCMT080304 solid carbide indexable insert, grade PR1230, MEGACOAT coated. Suited for steel.
Specifications
Ansi codeZCMT080304 PR1230
Coating finishMEGACOAT
Coating processPVD
Corner radius0.0157
Cutting directionRight Hand
Hole diameter0.1142
Insert materialSolid Carbide
Insert size80304
Insert size code08
Insert styleZCMT
Iso codeZCMT080304
Length0.3819
Manufacturer gradePR1230
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
ShapeDiamond
StandardsANSI; ISO
Thickness0.1252
Width0.3228
