Kyocera
ZCMT12T306 Carbide Insert, Grade PR1230, MEGACOAT - Kyocera TKC09474
MFR# TKC09474ISO/ANSI# ZCMT12T306Series DRZ
$25.22List $36.29
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1230
MaterialCarbide
CoatingMEGACOAT
Description

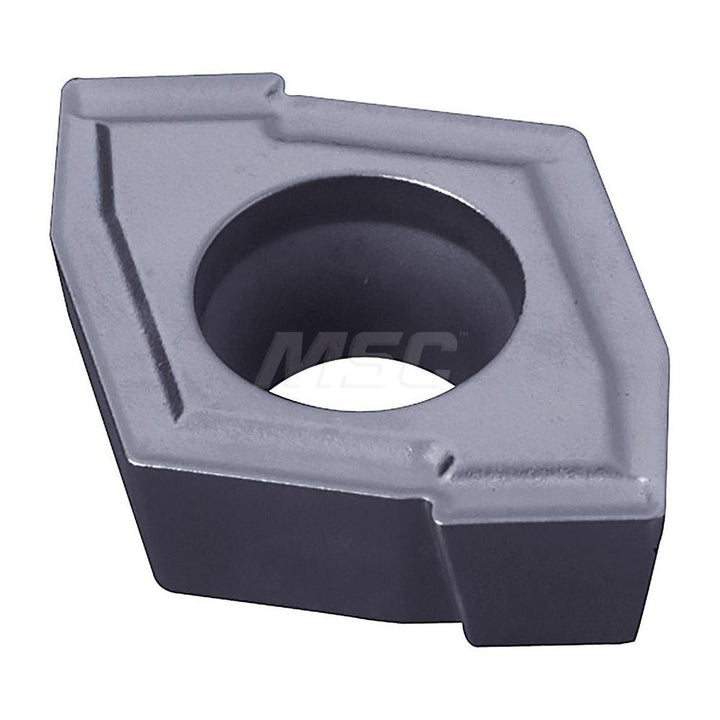

The Kyocera TKC09474 is a ZCMT12T306 carbide indexable insert, grade PR1230, MEGACOAT coated. Suited for steel.
Specifications
Ansi codeZCMT12T306 PR1230
Coating finishMEGACOAT
Coating processPVD
Corner radius0.0236
Insert materialCarbide
Insert size12
Insert size code12
Insert styleZCMT
Iso codeZCMT12T306
Length0.563
Manufacturer gradePR1230
Number of cutting edges4
Primary workpiece materialSteel
RakePositive
Relief angle7
ShapeDiamond
StandardsANSI; ISO
Thickness0.1563
Width0.5039
