Kyocera

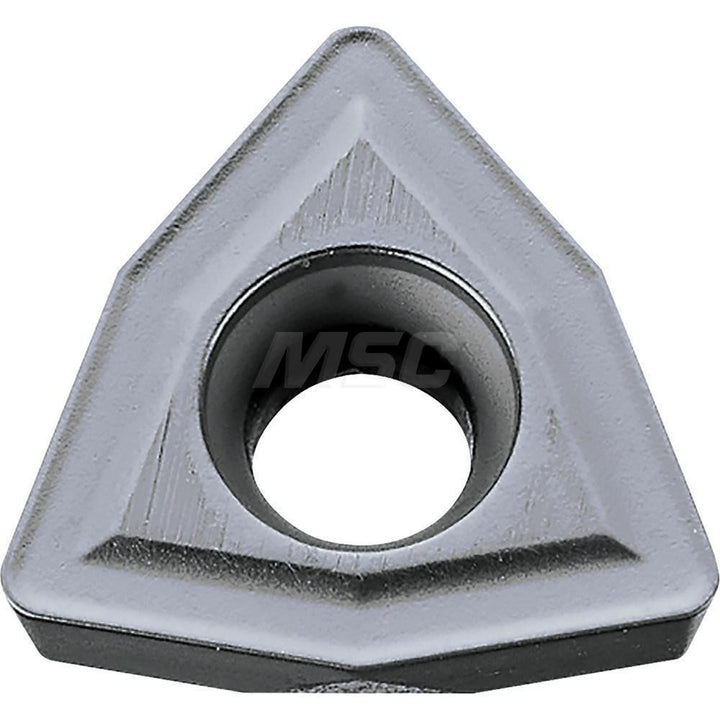

WCMX06T308M1 Solid Carbide Insert, Grade PR1230, Coated - Kyocera TKC89002
MFR# TKC89002ISO/ANSI# WCMX06T308M1Series Holeshot Drill & Coremaster Coredrill
$17.77List $25.58
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradePR1230
MaterialSolid Carbide
CoatingCoated
Description
The Kyocera TKC89002 is a WCMX06T308M1 solid carbide indexable insert, grade PR1230, Coated coated. Suited for steel.
Specifications
Ansi codeWCMX06T308-M1 PR1230
ChipbreakerM1
Coating finishCoated
Coating processPVD
Corner radius in1/32
Cutting directionRight Hand
Hole diameter0.1460
Included angle degree80
Inscribed circle in3/8
Insert materialSolid Carbide
Insert size06
Insert size code06
Insert styleWCMX
Iso codeWCMX06T308M1
Manufacturer gradePR1230
Primary workpiece materialSteel
RakePositive
Relief angle7
ShapeTrigon
StandardsANSI; ISO
Thickness in5/32
