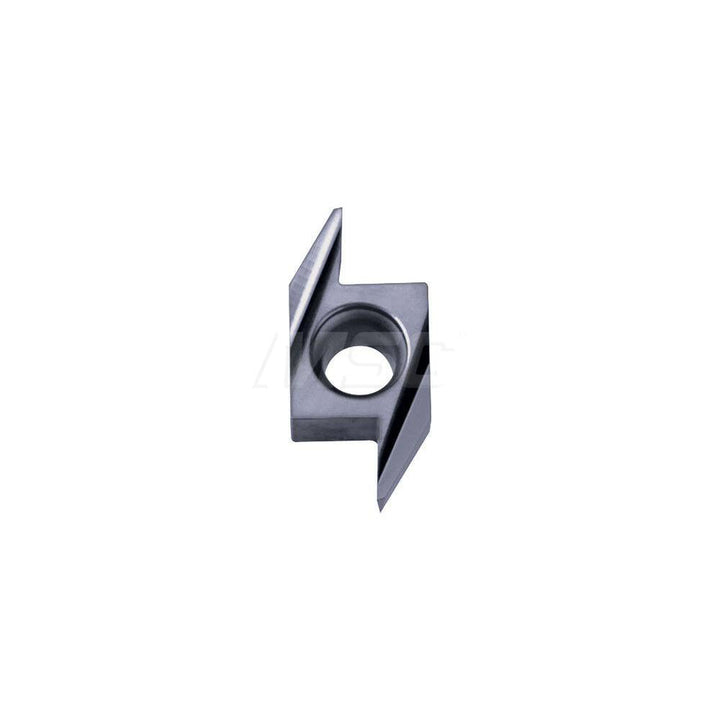

ABS15R4005M Carbide Insert, Grade PR1225, MEGACOAT - Kyocera TKE00103

Kyocera

ABS15R4005M Carbide Insert, Grade PR1225, MEGACOAT - Kyocera TKE00103

MFR# TKE00103ISO/ANSI# ABS15R4005MPR1225Series BTI

$44.08List $63.43 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradePR1225
MaterialCarbide
CoatingMEGACOAT

Description

The Kyocera TKE00103 is a ABS15R4005M carbide indexable insert, grade PR1225, MEGACOAT coated. Suited for stainless steel.

Specifications

Chip breakerCommon
Clearance codeB
Coating finishMEGACOAT
Coating processPVD
Corner radius0.0020
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1181
Included angle75degree
Industry standard numberABS15R4005MPR1225
Inscribed circle0.2760
Insert handRight Hand
Insert holding methodScrew
Insert length0.6063
Insert materialCarbide
Insert shapeIrregular
Insert size code15-4005
Insert styleABS
Insert thickness in5/32
Iso codeABS15R4005M
Lead angle30degree
Length range0.6000 - 0.6500
Manufacturers catalog numberTKE00103
Manufacturer gradePR1225
Material gradeP10; P20; P30; M10; M20; M30; M40
Maximum depth of cut0.1650
Multi use applicationBack Turning
Multi use toolNo
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle15
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeS
Width0.2756in
Wiper edgeNo
