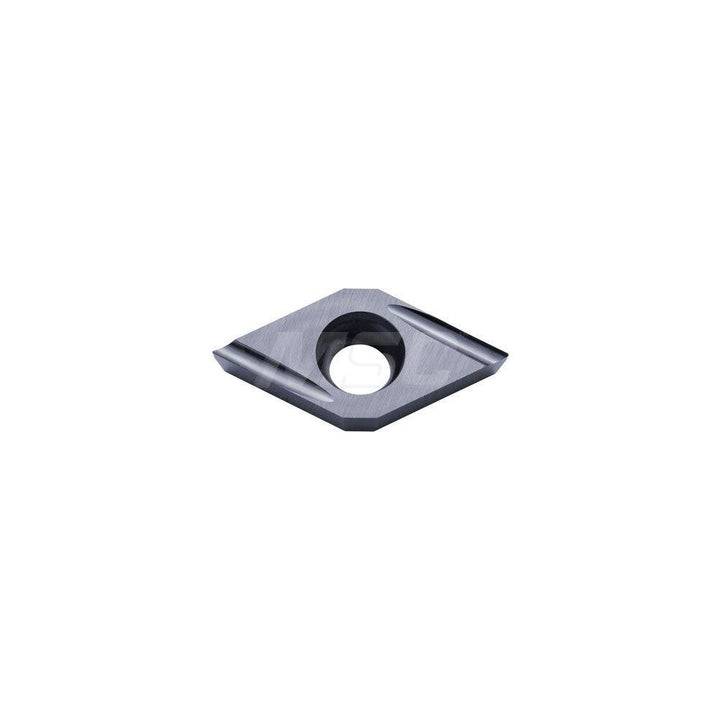

DCGT11T304MFR-U Carbide Insert, Grade PR1225, MEGACOAT - Kyocera TKE03337

Kyocera

DCGT11T304MFR-U Carbide Insert, Grade PR1225, MEGACOAT - Kyocera TKE03337

MFR# TKE03337ISO/ANSI# DCGT3251MFRUPR1225Series ISOI

$23.46List $33.76 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradePR1225
MaterialCarbide
CoatingMEGACOAT

Description

The Kyocera TKE03337 is a DCGT11T304MFR-U carbide indexable insert, grade PR1225, MEGACOAT coated. Suited for stainless steel.

Specifications

Chip breakerU
Clearance codeC
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCGT3251MFRUPR1225
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert length0.9140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code3251
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304MFR-U
Length range0.7000 - 10.0000
Manufacturers catalog numberTKE03337
Manufacturer gradePR1225
Material gradeP10; P20; P30; M10; M20; M30; M40
Maximum depth of cut0.3047
Multi use applicationBack Boring; Copying; External Turning; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle30
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
