Kyocera

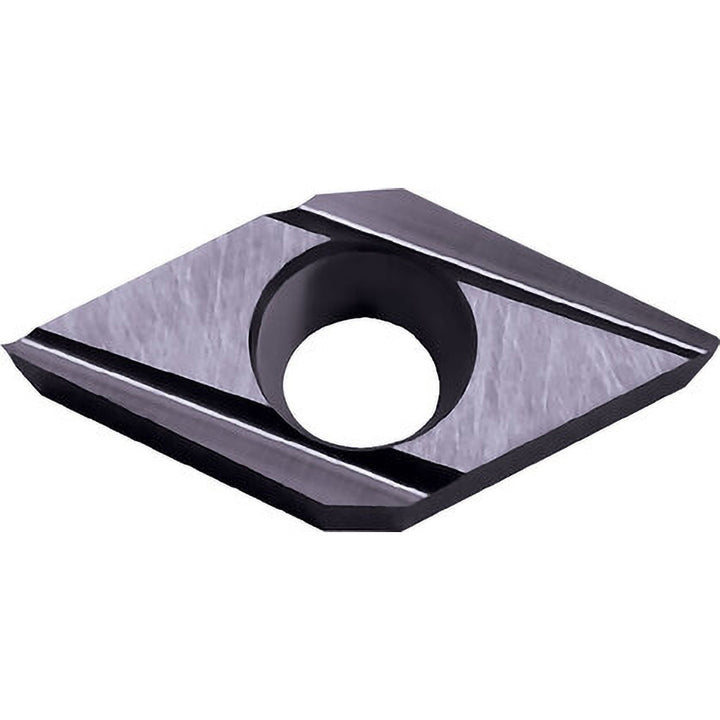

DCGT11T304MFR-J Carbide Insert, Grade PR1225, MEGACOAT - Kyocera TKE03407
MFR# TKE03407ISO/ANSI# DCGT3251MFRJPR1225Series ISOI
$23.46List $33.76
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradePR1225
MaterialCarbide
CoatingMEGACOAT
Description
The Kyocera TKE03407 is a DCGT11T304MFR-J carbide indexable insert, grade PR1225, MEGACOAT coated. Suited for stainless steel.
Specifications
Chip breakerJ
Clearance codeC
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCGT3251MFRJPR1225
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert length0.9140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code3251
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304MFR-J
Length range0.7000 - 10.0000
Manufacturers catalog numberTKE03407
Manufacturer gradePR1225
Material gradeP10; P20; P30; M10; M20; M30; M40
Maximum depth of cut0.3047
Multi use applicationBack Boring; Copying; External Turning; Sub-Spindle
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle14
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
