Kyocera

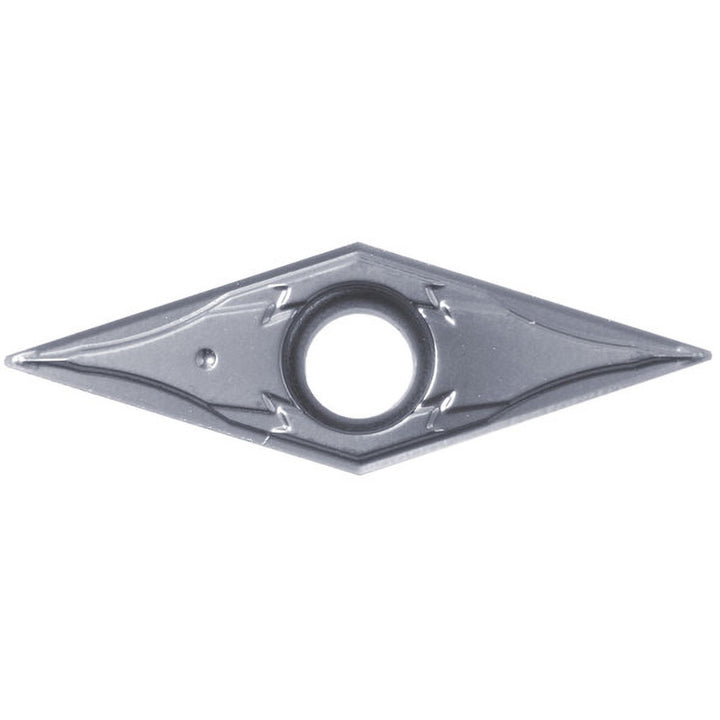

VPGT110302MFP-GF Carbide Insert, Grade PR1225, MEGACOAT - Kyocera TKE08046
MFR# TKE08046ISO/ANSI# VPGT2205MFPGFPR1225Series ISOI
$27.32List $39.31
Save 30%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradePR1225
MaterialCarbide
CoatingMEGACOAT
Description
The Kyocera TKE08046 is a VPGT110302MFP-GF carbide indexable insert, grade PR1225, MEGACOAT coated. Suited for stainless steel.
Specifications
Chip breakerGF
Clearance codeP
Coating finishMEGACOAT
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1102
Included angle35degree
Industry standard numberVPGT2205MFPGFPR1225
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8720
Insert materialCarbide
Insert shapeDiamond 35
Insert size code2205
Insert styleVPGT
Insert thickness in1/8
Iso codeVPGT110302MFP-GF
Length range0.7000 - 10.0000
Manufacturers catalog numberTKE08046
Manufacturer gradePR1225
Material gradeP10; P20; P30; M10; M20; M30; M40
Maximum depth of cut0.2907
Multi use applicationBack Boring; Copying; External Turning; Facing; Internal Facing; Profiling; Undercutting
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Rake angle7.5
Relief angle11
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
