Kyocera

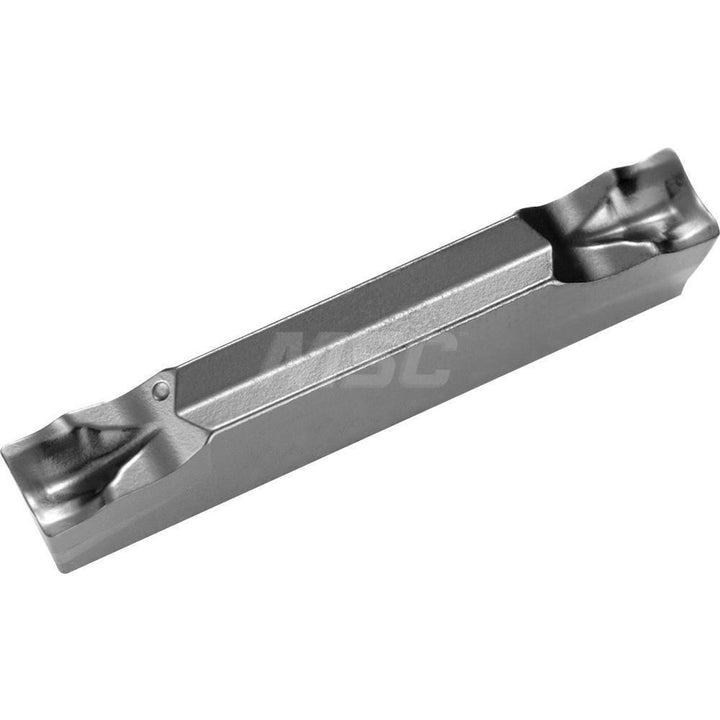

GDM3020N025PM Solid Carbide Insert, Grade PR1225, Megacoat - Kyocera TKE10530
MFR# TKE10530ISO/ANSI# GDM3020N025PMCat# GDM3020N-025PMSeries GD
$30.59List $43.25
Save 29%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradePR1225
MaterialSolid Carbide
CoatingMegacoat
Description
The Kyocera TKE10530 is a GDM3020N025PM solid carbide indexable insert, grade PR1225, Megacoat coated. Suited for steel.
Specifications
Ansi codeGDM3020N025PMPR1225
Chip breakerPM
Coating finishMegacoat
Coating processPVD
Corner radius0.0098
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size3020
Insert size code3020
Insert styleGDM
Insert thickness0.0906
Iso codeGDM3020N025PM
Manufacturers catalog numberGDM3020N-025PM
Manufacturer gradePR1225
Material gradeMicrograin
Multi use toolYes
Overall length0.7874
Primary workpiece materialSteel
RakePositive
Rake angle3.00
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
