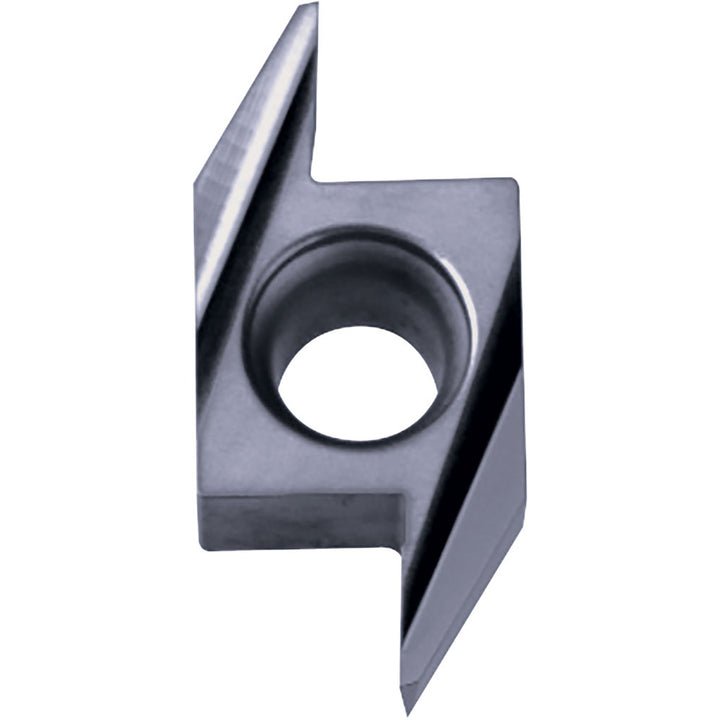

ABS15R4015 Solid Carbide Insert, Grade PR930, TiCN - Kyocera TKT00986

Kyocera

ABS15R4015 Solid Carbide Insert, Grade PR930, TiCN - Kyocera TKT00986

MFR# TKT00986ISO/ANSI# ABS15R4015Cat# ABS15R4015Series APBT

$44.08List $63.43 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradePR930
MaterialSolid Carbide
CoatingTiCN

Description

The Kyocera TKT00986 is a ABS15R4015 solid carbide indexable insert, grade PR930, TiCN coated. Suited for steel.

Specifications

Ansi codeABS15R4015PR930
Coating finishTiCN
Coating processPVD
Corner radius0.0590
Cutter series compatibilityAABSR-JXF; AABSR-F; SABSR-JXF; SABSR-F
Hole diameter0.1181
Inscribed circle0.2756
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew; Clamp
Insert materialSolid Carbide
Insert shapeIrregular
Insert size15
Insert size code15R4015
Insert styleABS
Iso codeABS15R4015
Length0.6062
Length range0.6000 to 0.6500
Manufacturers catalog numberABS15R4015
Manufacturer gradePR930
Material applicationSteel; Stainless Steel
Material gradeMicrograin
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle15
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.2756
