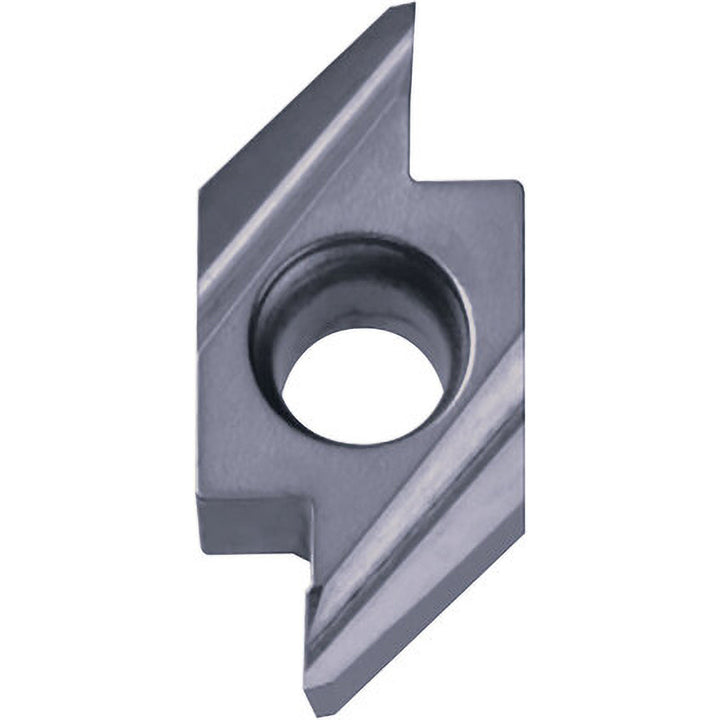

ABW15R4015 Carbide Insert, Grade PR930, TiCN - Kyocera TKT00991

Kyocera

ABW15R4015 Carbide Insert, Grade PR930, TiCN - Kyocera TKT00991

MFR# TKT00991ISO/ANSI# ABW15R4015PR930Series APBT

$44.08List $63.43 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradePR930
MaterialCarbide
CoatingTiCN

Description

The Kyocera TKT00991 is a ABW15R4015 carbide indexable insert, grade PR930, TiCN coated. Suited for steel.

Specifications

Chip breakerCommon
Clearance codeB
Coating finishTiCN
Coating processPVD
Corner radius0.0590
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1181
Included angle75degree
Industry standard numberABW15R4015PR930
Inscribed circle0.2760
Insert handRight Hand
Insert holding methodScrew
Insert length0.6063
Insert materialCarbide
Insert shapeIrregular
Insert size code15-4015
Insert styleABW
Insert thickness in5/32
Iso codeABW15R4015
Lead angle45degree
Length range0.6000 - 0.6500
Manufacturers catalog numberTKT00991
Manufacturer gradePR930
Material gradeP01; P10; P20; M10; M20
Maximum depth of cut0.1650
Multi use applicationBack Turning
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle15
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeW
Width0.2756in
Wiper edgeNo
