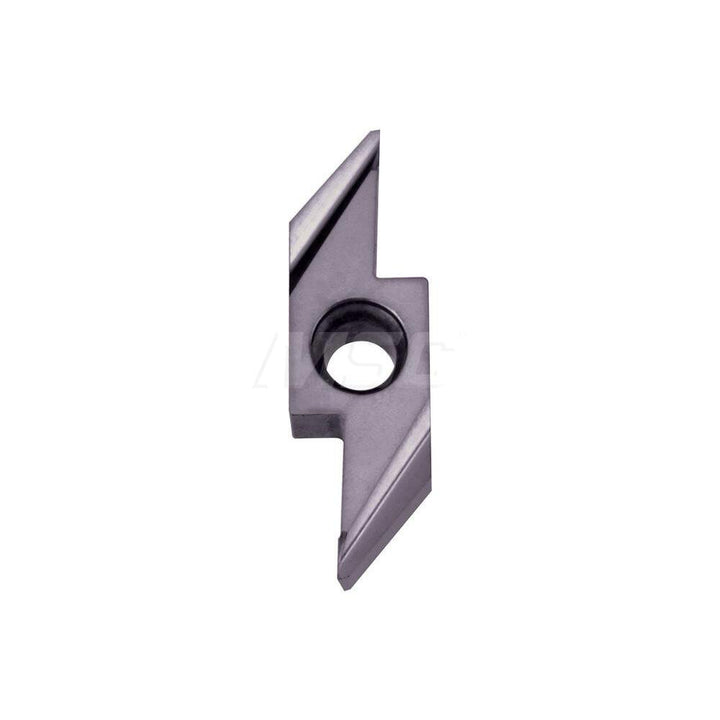

ABW23R5005 Carbide Insert, Grade PR930, TiCN - Kyocera TKT00995

Kyocera

ABW23R5005 Carbide Insert, Grade PR930, TiCN - Kyocera TKT00995

MFR# TKT00995ISO/ANSI# ABW23R5005PR930Series APBT

$55.10List $79.29 Save 30%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradePR930
MaterialCarbide
CoatingTiCN

Description

The Kyocera TKT00995 is a ABW23R5005 carbide indexable insert, grade PR930, TiCN coated. Suited for steel.

Specifications

Chip breakerCommon
Clearance codeB
Coating finishTiCN
Coating processPVD
Corner radius0.0020
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1181
Included angle75degree
Industry standard numberABW23R5005PR930
Inscribed circle0.2760
Insert handRight Hand
Insert holding methodScrew
Insert length0.9213
Insert materialCarbide
Insert shapeIrregular
Insert size code23-5005
Insert styleABW
Insert thickness in5/32
Iso codeABW23R5005
Lead angle45degree
Length range0.7000 - 10.0000
Manufacturers catalog numberTKT00995
Manufacturer gradePR930
Material gradeP01; P10; P20; M10; M20
Maximum depth of cut0.1650
Multi use applicationBack Turning
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle15
Secondary workpiece materialStainless Steel
StandardsANSI; ISO
Tolerance codeW
Width0.2756in
Wiper edgeNo
